Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI
Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI
Model: LPV-1
Product Series Overview

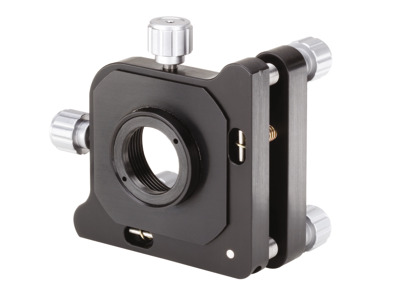

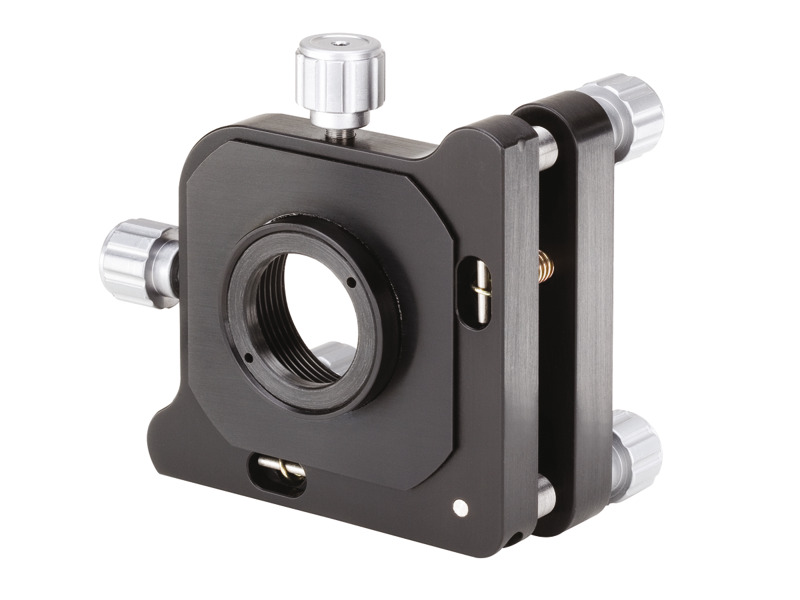

Compact Multi-Axis Lens PositionersThe LPV-1 Compact Lens Positioner provides an economical solution for applications requiring five (XYZ θXθY) axes of precision adjustment. Its compact size makes it ideal for OEM applications, or research projects with limited table space. Precise positioning is achieved with the integration of 100 TPI drive screws. Additionally, an integral 5/64 (M2) hex hole in the drive knobs allows for optional Allen key adjustment. Each unit is supplied with two non-marring Delrin retaining rings to safely secure optical elements with a maximum outer diameter of 1 inch (25.4 mm). The LPV-1 is post mounted via a counterbored hole sized for 8-32 or M4 screws.
