Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics
Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics
Model: SW-OM
Product Series Overview

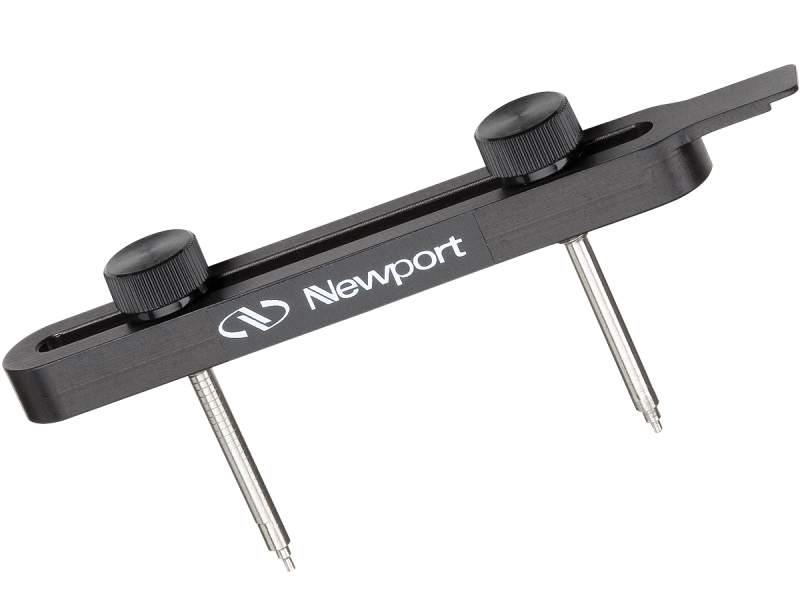

Spanner WrenchThe SW-OM Compact Spanner Wrench is used to adjust retaining rings in most optical systems without interrupting surrounding components. It has been optimized for use with mounts for 6.35 to 50.8 mm diameter optics and will accommodate retaining rings with either holes or slots. For the very smallest retaining rings, the end blade can be used.
Specifications
- TypeSpanner Wrench
- End Blade Width5.3 mm
- Optic Diameter6.35 to 50.8 mm
Resources & Downloads
Other
SW-OM RoHS Certificate(278.8 kB, PDF) SW-OM_RoHS2021.pdf(680.7 kB, PDF)
