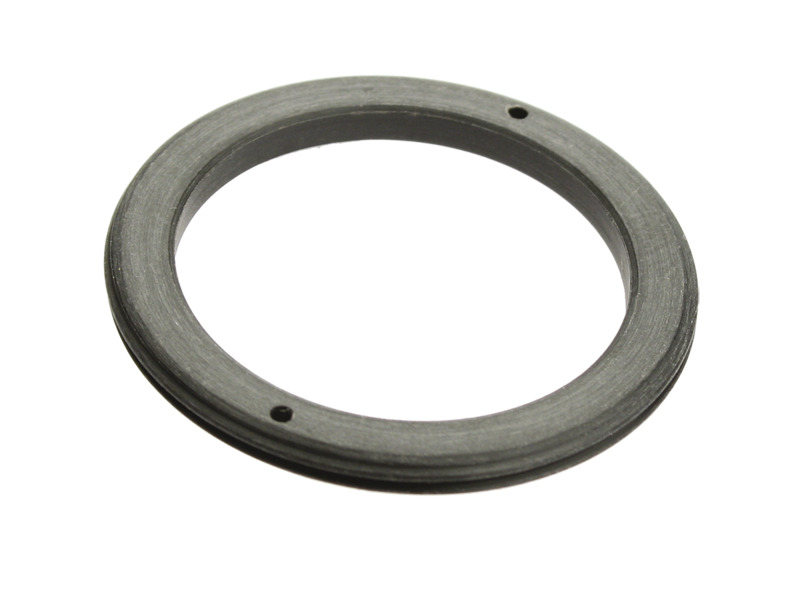

Retaining Ring, 30.0 mm ID, 1.563-20 Thread

Retaining Ring, 30.0 mm ID, 1.563-20 Thread

Model: LP-2-RR

$7.40

In Stock

Compare

Add to List

Product Series Overview

Adaptors and Retaining Rings

The LP-2-RR Retaining Ring is for use with the LPLH-1.5T, LH-1.5, & LH2-1.5R. It has a 30 mm inner diameter and 1.563-20 thread.

Specifications

Technical Specs

Type

Retaining Ring
Thread Type

1.563-20
Material

Delrin

Inside Diameter

30.0 mm

Type

Retaining Ring
Thread Type

1.563-20
Material

Delrin

Inside Diameter

30.0 mm

Resources & Downloads

Other

LP-2-RR RoHS Certificate (279.2 kB, PDF)
LP-2-RR_RoHS2021.pdf (688.3 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

retaining rings dwg.pdf (93.7 kB, PDF)
