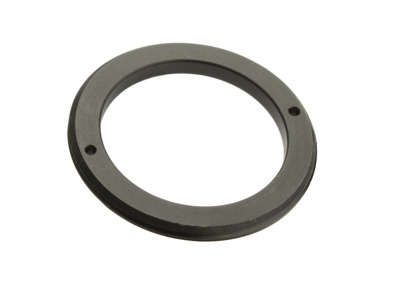

Retaining Ring, 26.9 mm ID, 1.438-20 Thread
Retaining Ring, 26.9 mm ID, 1.438-20 Thread
Model: LP-1-RR
Product Series Overview
Adaptors and Retaining RingsThe LP-1-RR Retaining Ring is for use with the LPLH-1T. It has a 26.9 mm inner diameter and 1.438-20 thread.
Resources & Downloads
Other
LP-1-RR RoHS Certificate(279.4 kB, PDF) LP-1-RR_RoHS2021.pdf(688.1 kB, PDF)
2D Product Drawings
retaining rings dwg.pdf(93.7 kB, PDF)
