Retaining Ring, 15.9 mm ID, 0.786-32 Thread

Adaptors and Retaining Rings

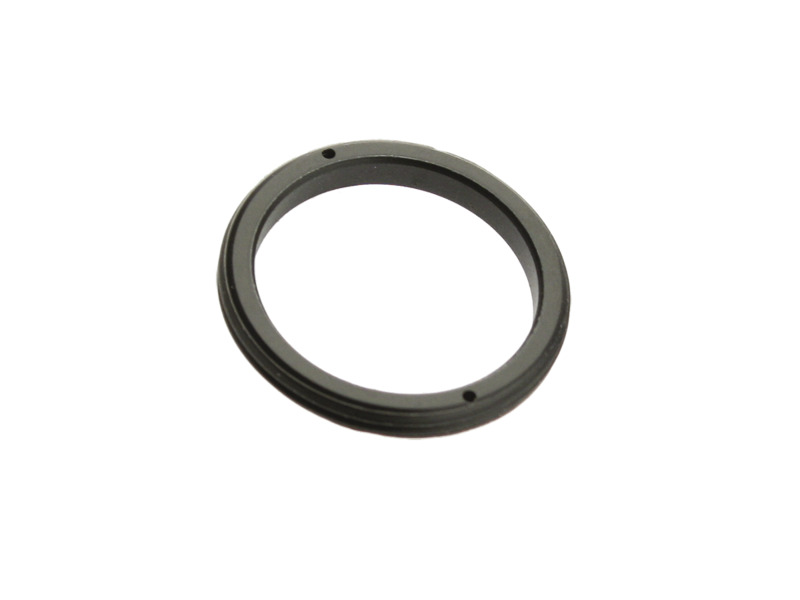

The LPLH-75-RR Retaining Ring had a 15.9 mm inner diameter and 0.786-32 thread. It works with the LPLH-75T Optic Holder for the LP-05A Series Multi-Axis Lens Positioner.

Specifications

Technical Specs

Type
Retaining Ring
Thread Type
0.786-32
Material
Delrin

Inside Diameter
15.9 mm

Type
Retaining Ring
Thread Type
0.786-32
Material
Delrin

Inside Diameter
15.9 mm

Resources & Downloads

Other

LPLH-75-RR RoHS Certificate(279.4 kB, PDF)
LPLH-75-RR_RoHS2021.pdf(688.7 kB, PDF)

2D Product Drawings

retaining rings dwg.pdf(93.7 kB, PDF)
