Optic Holder, 0.75 in. Diameter, 0.875-20 Thread, For LP-05A Series
Optic Holder, 0.75 in. Diameter, 0.875-20 Thread, For LP-05A Series
Model: LPLH-75T
In Stock
Product Series Overview

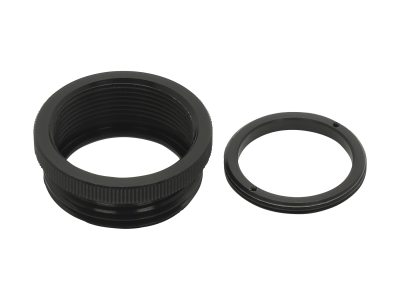

Precision Multi-Axis Lens PositionersThe LPLH-75T Optic Holder is useful for precision positioning 3/4 inch (19.05 mm) diameter optics. It features 0.875-20 threads for use in LP-05A Series multi-axis lens positioners. It includes a reataing ring to secure the 0.75 in. optic.
Resources & Downloads
2D Product Drawings
LPLH-751-5TA-S(126.7 kB, PDF)
Other
LPLH-75T RoHS Certificate(278.5 kB, PDF) LPLH-75T_RoHS2021.pdf(684.7 kB, PDF)
