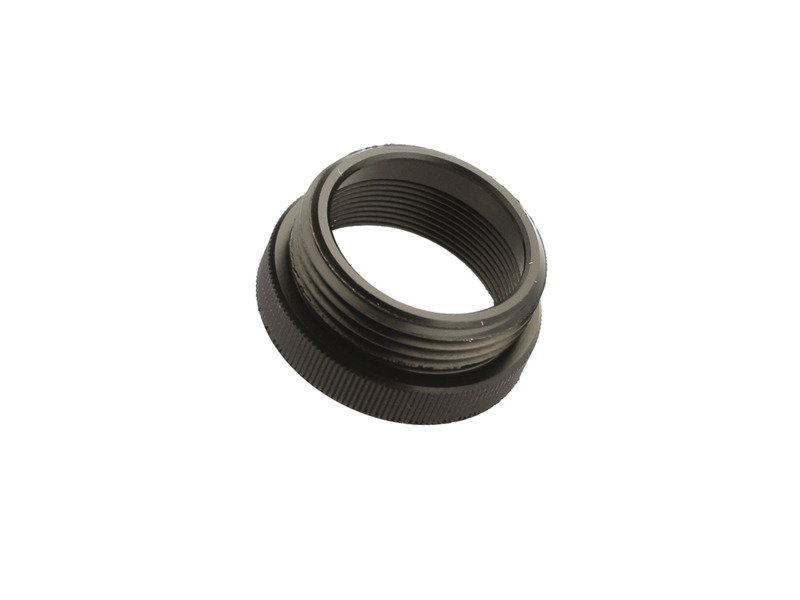

Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series
Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series
Model: LPMH-05
Product Series Overview
Precision Multi-Axis Lens PositionersThe LPMH-05 Optic Holder is useful for precision positioning of RMS thread microscope objective lenses. It features 0.875-20 threads for use with LP-05A Series multi-axis lens positioners.
Resources & Downloads
2D Product Drawings
LPMH-05L-PMH-S(89.7 kB, PDF)
Other
LPMH-05 RoHS Certificate(280.1 kB, PDF) LPMH-05_RoHS2021.pdf(691.3 kB, PDF)
