Mirror Mount, Fixed, 25.4 mm Diameter, M4 Thread, A-LINE
Mirror Mount, Fixed, 25.4 mm Diameter, M4 Thread, A-LINE
Model: M-LH-1DB
Product Series Overview

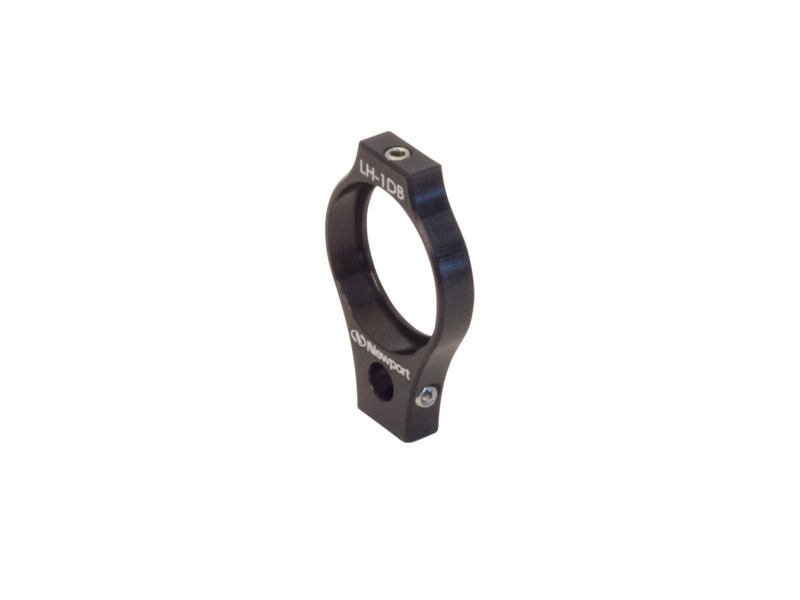

A-Line Fixed Optic MountsThe A-LINE™ M-LH-1DB Fixed Mirror Mount is a convenient and economical solution for mounting 1.0 inch (25.4 mm) mirrors, beamsplitters or UPA series 1-in adaptors. The mount consists of a double-bored aperture and set screw to hold the optic firmly, but gently. The holder incorporates an M4 threaded mounting hole for post mounting on Metric SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts. This product is also available in 10-piece saving pack
Resources & Downloads
2D Product Drawings
LH-1DB-349(115.3 kB, PDF)
Other
M-LH-1DB RoHS Certificate(278.7 kB, PDF) M-LH-1DB_RoHS2021.pdf(682.4 kB, PDF)
