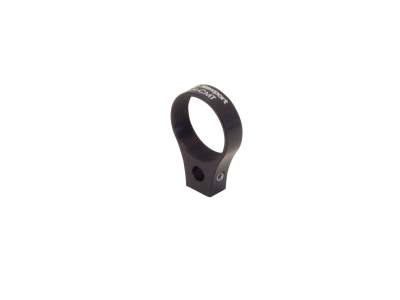

Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), M4 Thread, A-LINE
Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), M4 Thread, A-LINE
Model: M-LH-CMT
Product Series Overview
A-Line™ Objective and C-Mount Lens MountsThe M-LH-CMT C-Mount Camera Lens holder is a convenient and economical solution for fixed mounting of Camera Lenses with 1.00-32 threads. The holder incorporates an M4 threaded mounting hole for post mounting on both Metric SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.
Resources & Downloads
2D Product Drawings
LH-A(128.2 kB, PDF)
Other
M-LH-CMT RoHS Certificate(277.8 kB, PDF) M-LH-CMT_RoHS2021.pdf(680.6 kB, PDF)
