Kinematic Base, Magnetic, 76.2 mm Square, Metric
Kinematic Base, Magnetic, 76.2 mm Square, Metric
Model: M-BK-3A
Product Series Overview

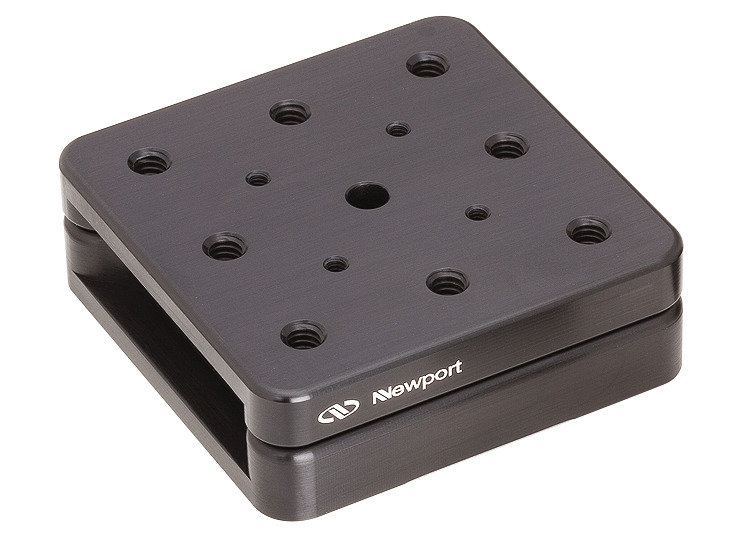

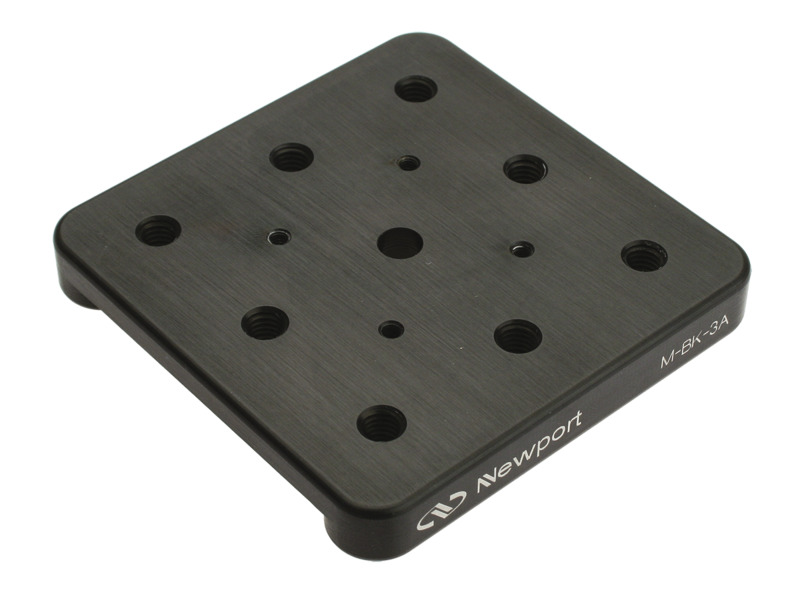

Kinematic BasesThe BK Series of kinematic bases has magnetically coupled top and bottom plates, providing repeatability of less than 100 μrad. The M-BK-3A kinematic base has a 76.2 x 76.2 mm top and bottom plates. Kinematic bases allow you to mount, remove, and replace optical components with very high repeatability. These bases are especially timesaving in setups where optical elements must frequently be interchanged, or when reference elements must occasionally be inserted in an optical path. The M-BK-3A-T is an extra top plate that may be ordered separately.
Convenient Magnetic Coupling
Four high-strength magnets in the BK-3A couple the plates together.
BK-Series bases utilize four high-strength magnets to securely couple the top and bottom plates together. The magnetically-coupled plates are easy to release by simply tilting the mounted component. The edges are chamfered to reduce the risk of pinching your fingers when coupling the top and bottom plates.
Bolt Down Anywhere at Any Orientation

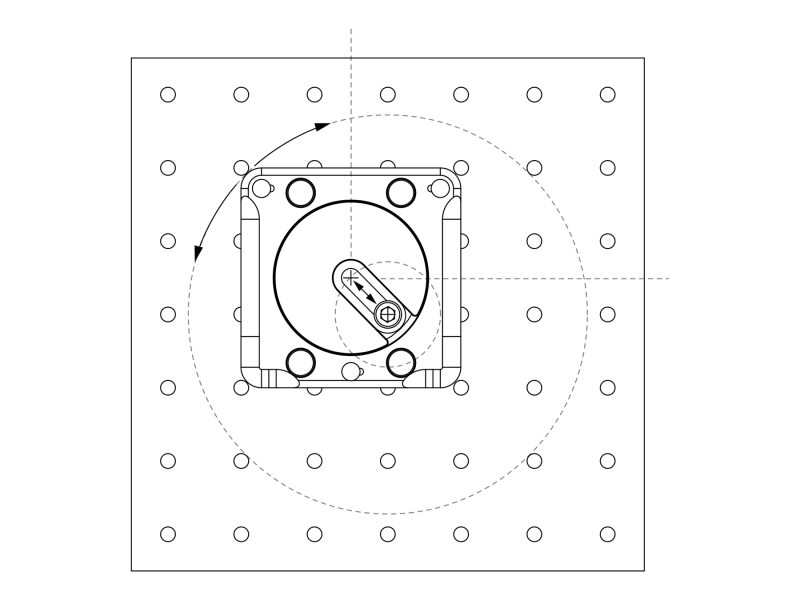

The BK-3A kinematic bases feature a freely rotating disk insert with an eccentric clearance slot. Permiting 0.72 in. of translation which covers at least half the diagonal distance of standard 1.0 in. (25 mm) mounting hole grids, this patented mounting method allows an optical component to blot down anywhere and at any orientation on our optical tables and breadboards.
Exceptional Repeatability
Top and Bottom Interfacing Surfaces of BK-2A
Three polished steel balls in the bottom plate register with a hardened cone, groove, and flat in the top plate so the two plates relocate precisely every time. These bases are especially time-saving in setups where optical elements must frequently be interchanged, or when reference elements must occasionally be inserted in an optical path.
Resources & Downloads
2D Product Drawings
BK-3A-S(194.4 kB, PDF)
Other
M-BK-3A RoHS Certificate(278.5 kB, PDF) M-BK-3A_RoHS2021.pdf(681.8 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-BK-2AKinematic Base, Magnetic, 50.5 x 62.2 mm, Metric | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-BK-1AKinematic Base, Magnetic, 25 mm Square, Metric | 1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-BK-3A-TTop Plate, For M-BK-3A, Kinematic Base, Metric | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

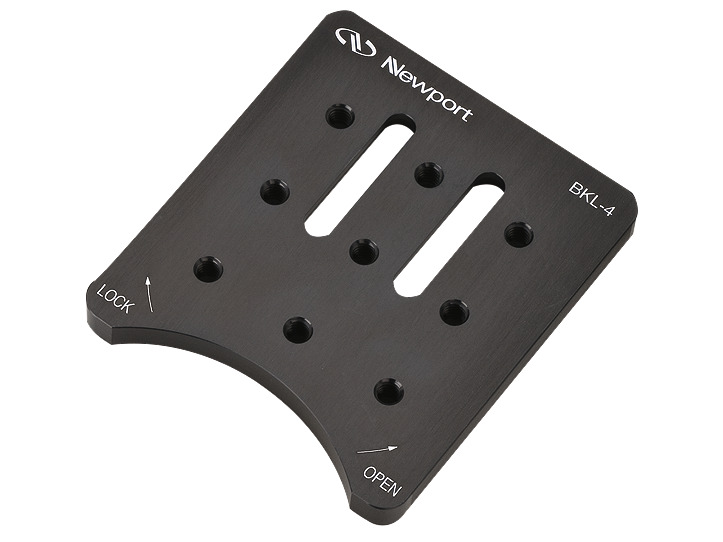

 | M-BKL-4Kinematic Base, Locking, 88.9 x 101.6 mm, Metric | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
