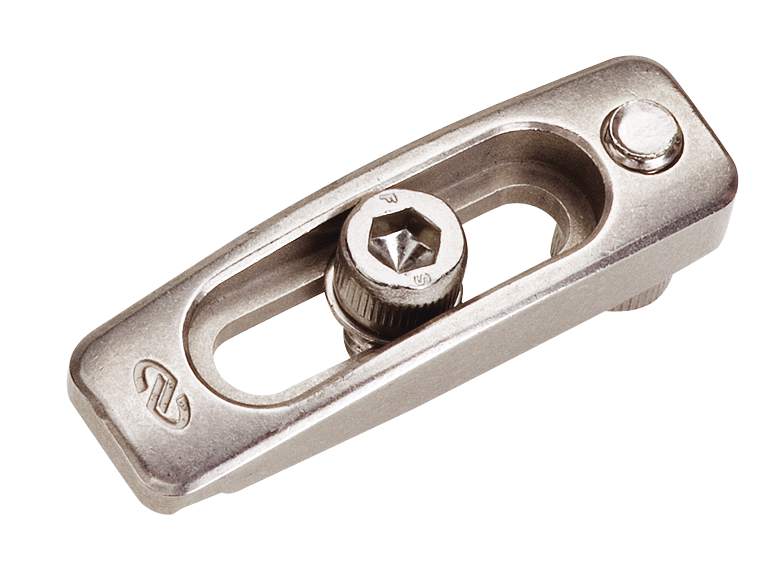

Base Clamp, Adjustable-Height, Short, M6 Tapped Holes

Model: M-BC-5

$12.70

In Stock

Compare

Add to List

Product Series Overview

Adjustable Height Base Clamps

The M-BC-5 Short Adjustable-Height Stainless Steel Base Clamp has M6 tapped holes and a notched tip for superior clamping security. This product is also available in 10-piece saving pack M-BC-5-PK.

Specifications

Technical Specs

Type

Short Base Clamp
Thread Type

M6

Material

Stainless Steel

Type

Short Base Clamp
Thread Type

M6

Material

Stainless Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BC-5-250 (144.9 kB, PDF)

Other

M-BC-5 RoHS Certificate (278.7 kB, PDF)
M-BC-5_RoHS2021.pdf (682.8 kB, PDF)
