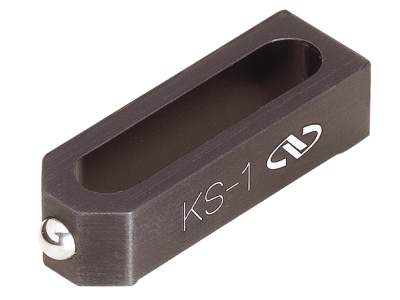

Kinematic Stop, 1 in. (25.4 mm) Coarse

Model: KS-1

$29

In Stock

Compare

Add to List

Product Series Overview

Kinematic Stops and Nudgers

The KS-1 Kinematic stops are used as position index points to locate components on an optical table and allow them to be removed and inserted repeatedly. Stops are designed with an inch-long slot sized for 1/4-20 (M6) screws to provide coarse positioning travel.

Specifications

Technical Specs

Type

Kinematic Stop

Type

Kinematic Stop

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

KS-1 DWG-S (68.8 kB, PDF)

Other

KS-1_RoHS2021.pdf (680.1 kB, PDF)
