Universal Base, Freely Rotating Disk, Eccentric Clearance Slot
Universal Base, Freely Rotating Disk, Eccentric Clearance Slot
Model: BUP-2
Product Series Overview

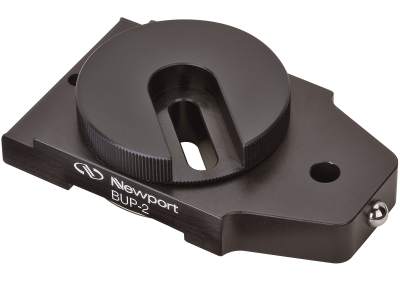

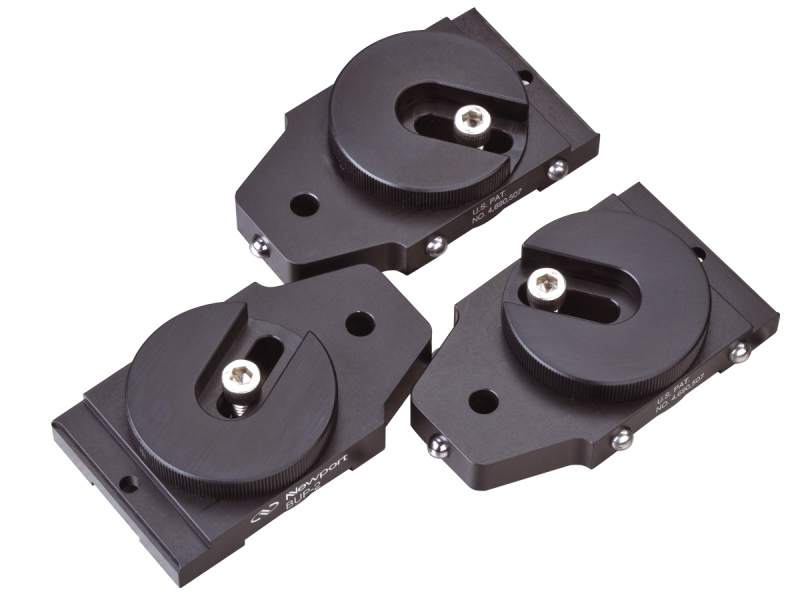

Universal Mounting BaseThe BUP-2 Universal Base incorporates a patented mounting device that gives unprecedented positioning flexibility. A freely rotating disk, inset into each base, has an eccentric clearance slot to accommodate a 1/4-20 or M6 tie-down bolt. This single bolt firmly clamps the assembly to your table surface. The slot permits 0.707 in. of translation - at least half the diagonal distance between holes in Newport’s English and metric tables, breadboards and mounting components like lab jacks and stages. Thus it is always possible to find a mounting hole through the clearance slot by rotating the trapped disc; the bases can be freely positioned anywhere, at any orientation, on your table surface.
Resources & Downloads
2D Product Drawings
BUP-2 ART-S(113.4 kB, PDF)
Other
BUP-2 RoHS Certificate(278.2 kB, PDF) BUP-2_RoHS2021.pdf(681.1 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | UP-1AUniversal Mounting Plate, 2.56 in. x 2.56 in. x 0.5 in., 1/4-20 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | B-2SADouble-Slotted Base, Stainless Steel, XY, 1.0 in. Range | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | BK-3AKinematic Base, Magnetic, 3 inch Square | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | B-05ASlotted Base, 0.68 in. Range Single Slot, Stainless Steel | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

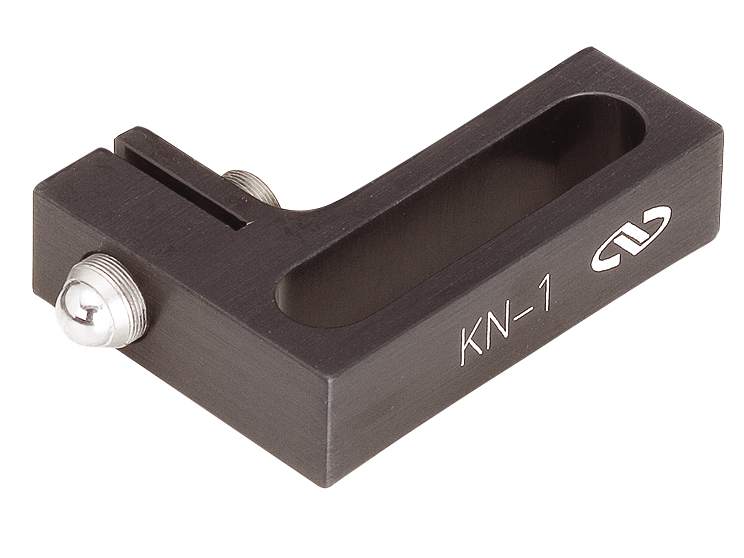

 | KN-1Kinematic Nudger, 1 in. (25.4 mm) Coarse, 0.3 in. (7.6 mm) Fine, 80 TPI | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
