Modular Riser Plates

Modular Riser Plates mount to optical tables and breadboards to incrementally raise the mounting surface for components to a new, fixed height. Riser plates are stackable, available in four heights, and each of the two surface areas offered feature a full array of either 1/4-20 or M6 mounting or through holes.

Raise and securely mount components at a fixed height

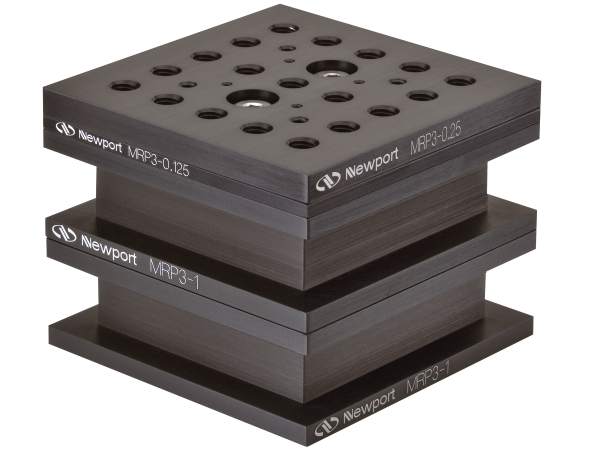

Stack to achieve any height in 0.125 in. increments
Aids in establishing a common optical axis height
Aluminum with a black anodized surface finish construction

See All Features

Show Filters:

Showing 10 of 16 total products

Compatibility:

Description	Compatibility	Height	Length	Width	Avail.	Price

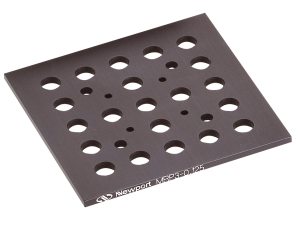

MRP3-0.125Modular Riser Plates, 3 in. x 3 in. x 0.125 in., 1/4-20 Thread	IMPERIAL	3.175 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59

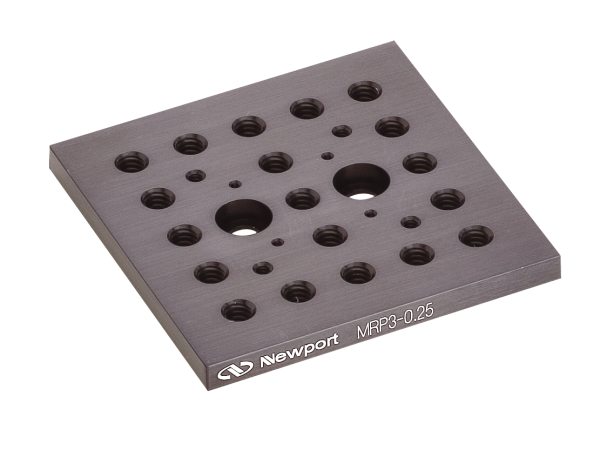

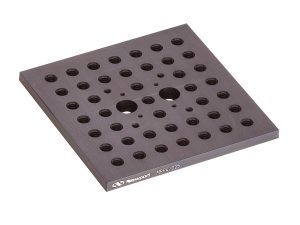

MRP3-0.25Modular Riser Plates, 3 in. x 3 in. x 0.25 in., 1/4-20 Thread	IMPERIAL	6.35 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$95

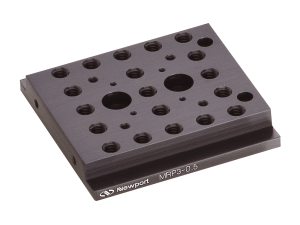

MRP3-0.5Modular Riser Plates, 3 in. x 3 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	12.7 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$108

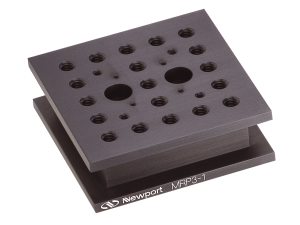

MRP3-1Modular Riser Plates, 3 in. x 3 in. x 1 in., 1/4-20 Thread	IMPERIAL	25.4 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$132

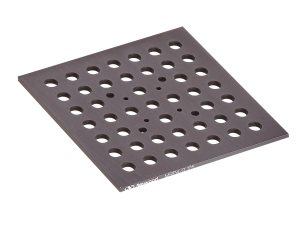

MRP4-0.125Modular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread	IMPERIAL	3.175 mm	101.6 mm	101.6 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$89
MRP4-0.25Modular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread	IMPERIAL	6.35 mm	101.6 mm	101.6 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$108
MRP4-0.5Modular Riser Plates, 4 in. x 4 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	12.7 mm	101.6 mm	101.6 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$124

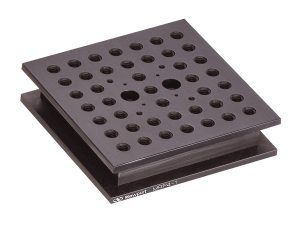

MRP4-1Modular Riser Plates, 4 in. x 4 in. x 1 in., 1/4-20 Thread	IMPERIAL	25.4 mm	101.6 mm	101.6 mm	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$132
M-MRP3-0.125Modular Riser Plates, 76.2 mm x 76.2 mm x 3.175 mm, M6 Thread, Metric	METRIC	3.175 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
M-MRP3-0.25Modular Riser Plates, 76.2 mm x 76.2 mm x 6.35 mm, M6 Thread, Metric	METRIC	6.35 mm	76.2 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$95

Show All

Features

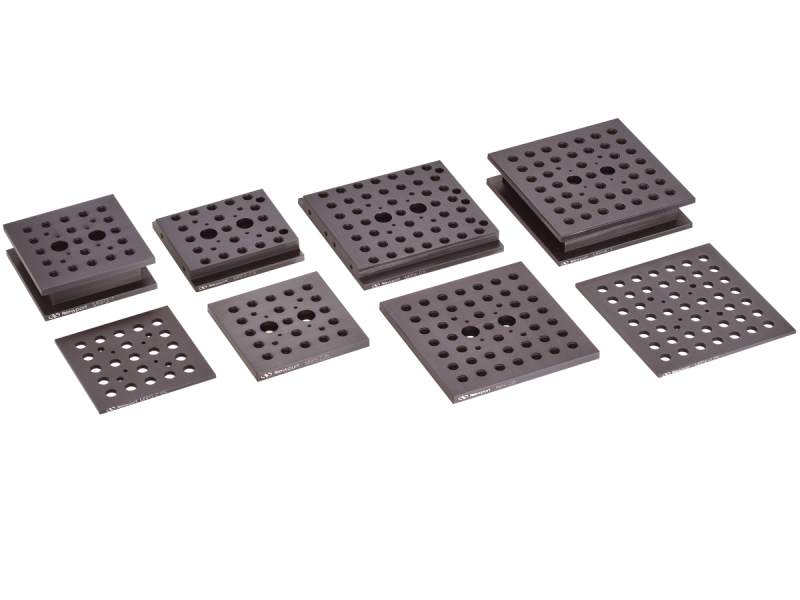

Available in a Variety of Stackable Sizes

Modular Riser Plates are available in four heights and can be stacked to achieve any height in 0.125 in. (3.175 mm) increments. For each height, risers are offered with a mounting area of either 3.0 in x 3.0 in (76.2 mm x 76.2 mm) or 4.0 in. x 4.0 in. (101.6 mm x 101.6 mm) and feature a full array of 1/4-20 (M6) threaded and through holes for mounting.

Multiple Surface Mount Options

Through holes on these riser plates can be used to mount plates directly to surfaces, or alternatively can be secured using additional base clamps. The 0.5 in. and 1.0 in. (12.7 mm and 25.4 mm) tall risers include specialized grooves around the base mounting with clamps while maintaining a minimal footprint.
