Kinematic Nudger, 0.75 in. (19.1 mm) Coarse, 0.5 in. (12.7 mm) Fine, 80 TPI

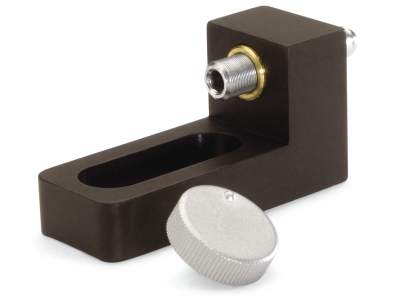

The 9315 Ball Tipped Nudger is used to finely position your setup, or for precise relocation of your components. It offers 1/4-80 precision over a 0.5 inch travel range. Three nudgers and a flat surface can be used to relocate a mount precisely. The 0.75 inch slot is compatible with 1/4-20 or M6 cap screws.

Specifications

Technical Specs

Type
Kinematic Nudger
Thread Type
1/4-80

Type
Kinematic Nudger
Thread Type
1/4-80

Resources & Downloads

3D Product Models

Download CAD Files

Other

MKS EU ROHS3 2015_863_EU Directive - 9315.pdf(691.7 kB, PDF)
REACH Supplier Statement - 9315.pdf(543.5 kB, PDF)
Latex Free Supplier Statement - 9315.pdf(491.7 kB, PDF)

2D Product Drawings

9315 Drawing(38.5 kB, PDF)
