Kinematic Nudger, 1 in. (25.4 mm) Coarse, 0.3 in. (7.6 mm) Fine, 80 TPI
Kinematic Nudger, 1 in. (25.4 mm) Coarse, 0.3 in. (7.6 mm) Fine, 80 TPI
Model: KN-1
Product Series Overview

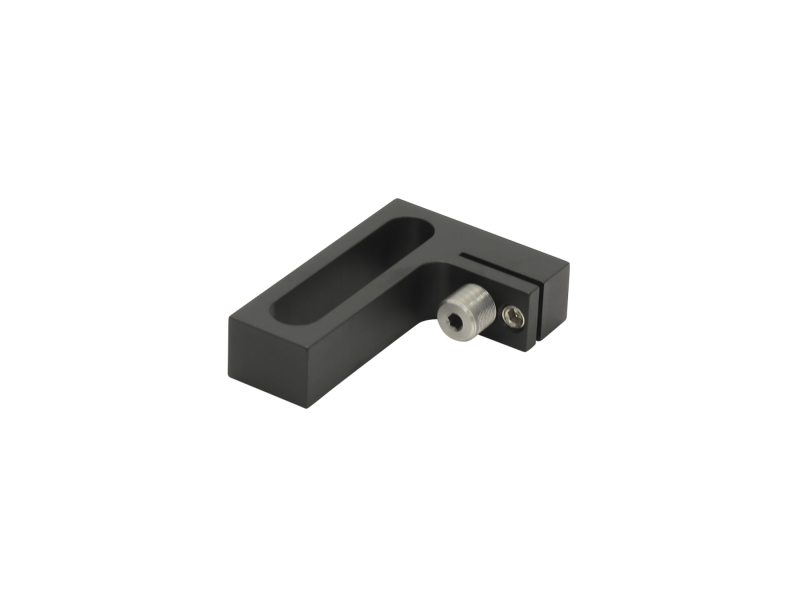

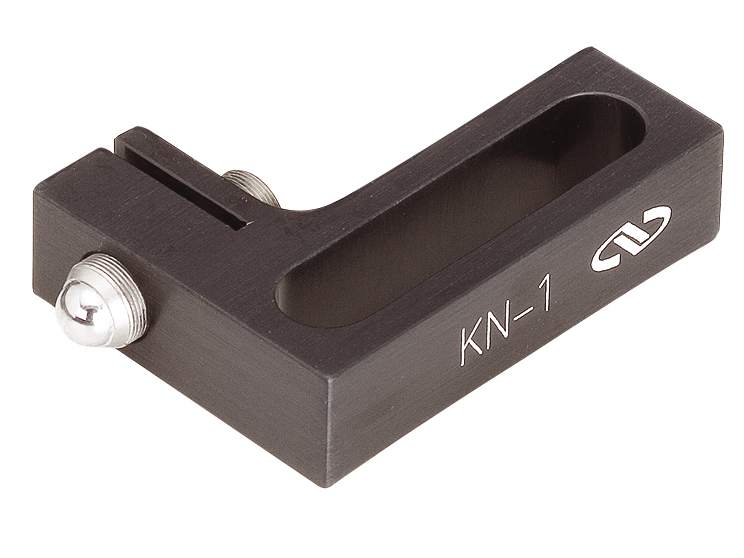

Kinematic Stops and NudgersThe KN-1 Kinematic Nudger is used to push or nudge a component, such as along a line defined by kinematic stops. Nudgers are designed with an inch-long slot sized for 1/4-20 (M6) screws to provide coarse positioning travel. The Nudger incorporates an 80-pitch adjustment screw with our patented locking mechanism to allow for 0.3 in. of fine travel.
Resources & Downloads
2D Product Drawings
KN-1 DWG-S(77.8 kB, PDF)
Other
KN-1_RoHS2021.pdf(680.3 kB, PDF)
