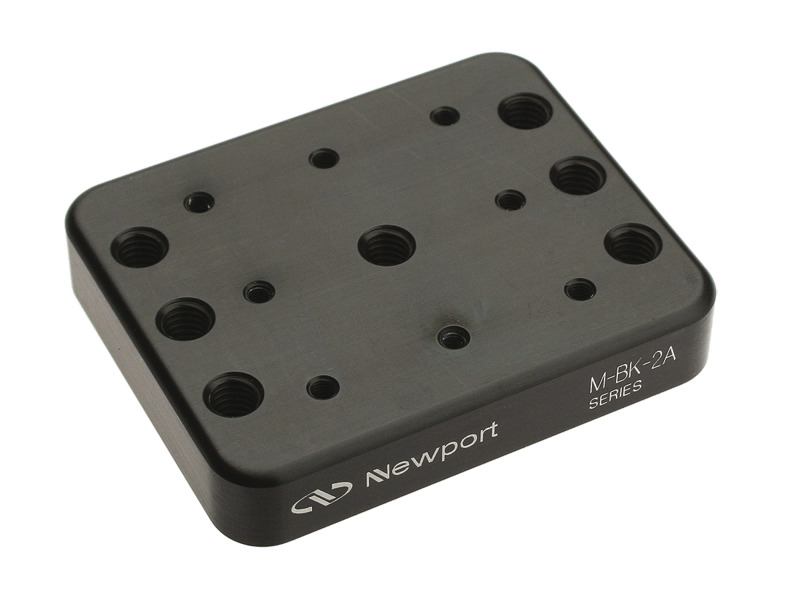

Top Plate, For M-BKL-2A, Kinematic Base, Metric

Top Plate, For M-BKL-2A, Kinematic Base, Metric

Model: M-BK-2A-T

$73

Show

Compare

Add to List

Product Series Overview

Kinematic Bases

The M-BK-2A-T Top Plate is a spare for the M-BK-2A Kinematic Base.

Specifications

Technical Specs

Type

Kinematic Base Top Plate
Base size

50.5 x 62.2 mm
Thread Type

M3 and M6

Material

Aluminum

Type

Kinematic Base Top Plate
Base size

50.5 x 62.2 mm
Thread Type

M3 and M6

Material

Aluminum

Resources & Downloads

Other

M-BK-2A-T RoHS Certificate (278.2 kB, PDF)
M-BK-2A-T_RoHS2021.pdf (681.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-2A-S (161.5 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock	$35
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40
		M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC		In Stock	$38
		M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL		In Stock	$72
		TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL		In Stock	$41

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-110 Kinematic Magnetic Base, 90 lb. Holding Force, M6 Threads	METRIC		In Stock	$263
		M-BKL-4 Kinematic Base, Locking, 88.9 x 101.6 mm, Metric	METRIC		In Stock	$321
		BUP-2 Universal Base, Freely Rotating Disk, Eccentric Clearance Slot	UNIVERSAL		In Stock	$118
		M-BK-1A Kinematic Base, Magnetic, 25 mm Square, Metric	METRIC		In Stock	$114
		M-BK-3A Kinematic Base, Magnetic, 76.2 mm Square, Metric	METRIC		In Stock	$225

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-BK-2A Kinematic Base, Magnetic, 50.5 x 62.2 mm, Metric	METRIC		In Stock	$130
		BK-2A-B Bottom Plate, For (M-)BK-2A Kinematic Base	UNIVERSAL		In Stock	$86
