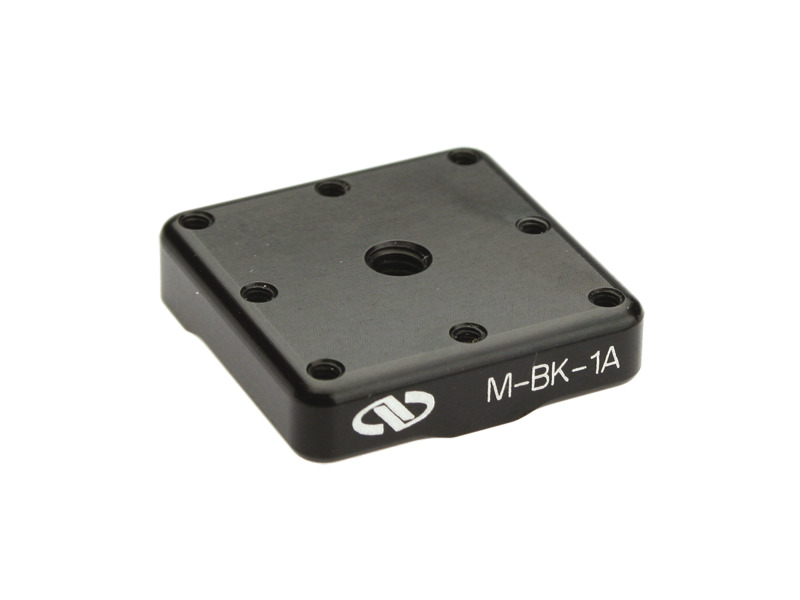

Top Plate, For M-BK-1A, Kinematic Base, Metric

Top Plate, For M-BK-1A, Kinematic Base, Metric

Model: M-BK-1A-T

$55

In Stock

Compare

Add to List

Product Series Overview

Kinematic Bases

The M-BK-1A-T Top Plate is a spare for the M-BK-1A Kinematic Base.

Specifications

Technical Specs

Type

Kinematic Base Top Plate
Base size

25 x 25 mm
Thread Type

M2 and M4

Material

Aluminum

Type

Kinematic Base Top Plate
Base size

25 x 25 mm
Thread Type

M2 and M4

Material

Aluminum

Resources & Downloads

Other

M-BK-1A-T RoHS Certificate (278.2 kB, PDF)
M-BK-1A-T_RoHS2021.pdf (681.4 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-1-S (150.2 kB, PDF)
