XY Lens Mount, Insertable, 25.4 mm, A-LINE
XY Lens Mount, Insertable, 25.4 mm, A-LINE
Model: LH-1XY
Product Series Overview

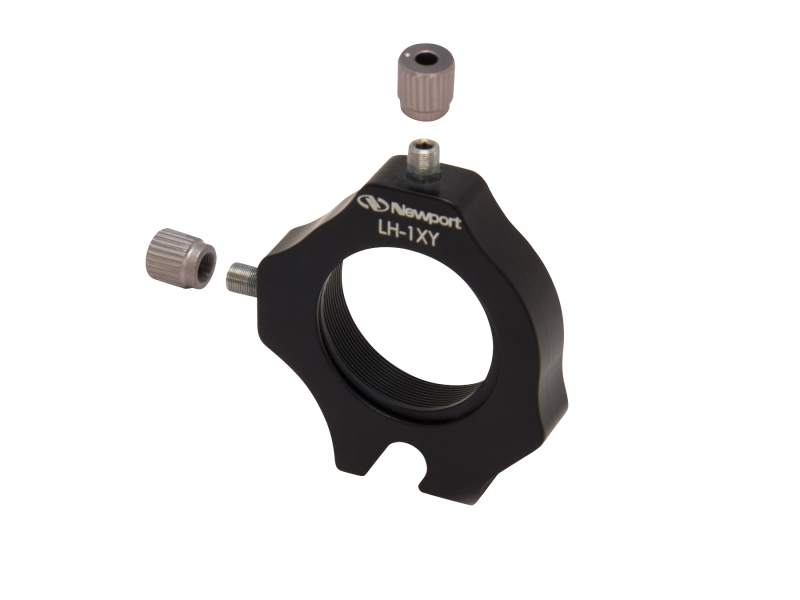

A-Line Adjustable Optic MountsThe A-LINE™ LH-1XY is an 1.5-mm travel adjustable lens mount for mounting Ø1 in. (25.4 mm) lenses. The lens mount has a unique angled slot to allow it to be inserted amongst a row of rod-mounted A-Line lens holders. This feature allows the user to easily add and remove lens from the middle of a beam path with out disassembly. This lens mount has special threaded knobs which can be removed with the aid of a 5/64 (2-mm) hex wrench.
Resources & Downloads
2D Product Drawings
LH-1XY-362(429.9 kB, PDF)
Other
LH-1XY RoHS Certificate(277.1 kB, PDF) LH-1XY_RoHS2021.pdf(678.7 kB, PDF)
