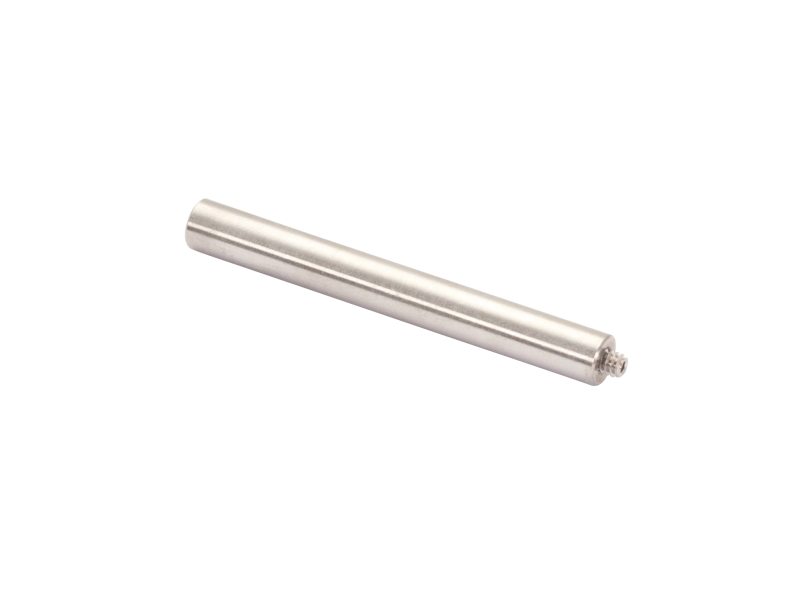

Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE
Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE
Model: LH-GR-2
Product Series Overview
A-Line Keyed Guide RodsThe LH-GR-2 Guide Rod is 6 mm diameter and 2 in. long with 4-40 thread. It allows any of the A-Line optic holders to mount with the same orientation along the rod.Two flat and parallel surfaces, machined along the length of the rod, key the A-Line mounts to the same rotational orientation.
Resources & Downloads
2D Product Drawings
LH-GR(369 kB, PDF)
Other
LH-GR-2_RoHS2021.pdf(682.1 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

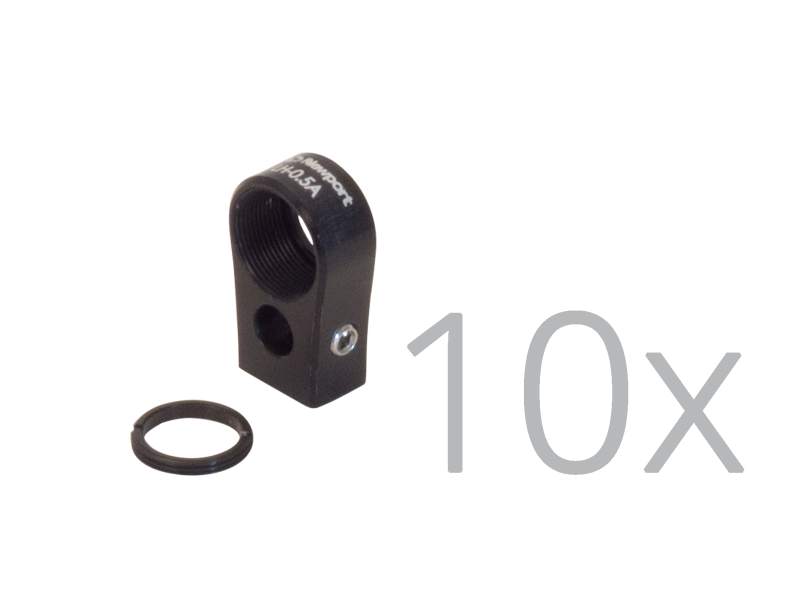

 | LH-0.5A-PKLens Mounts Pack, Fixed, 12.7 mm Diameter, 8-32 Thd, Qty 10, A-LINE | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
