Alignment Target, Insertable, A-Line

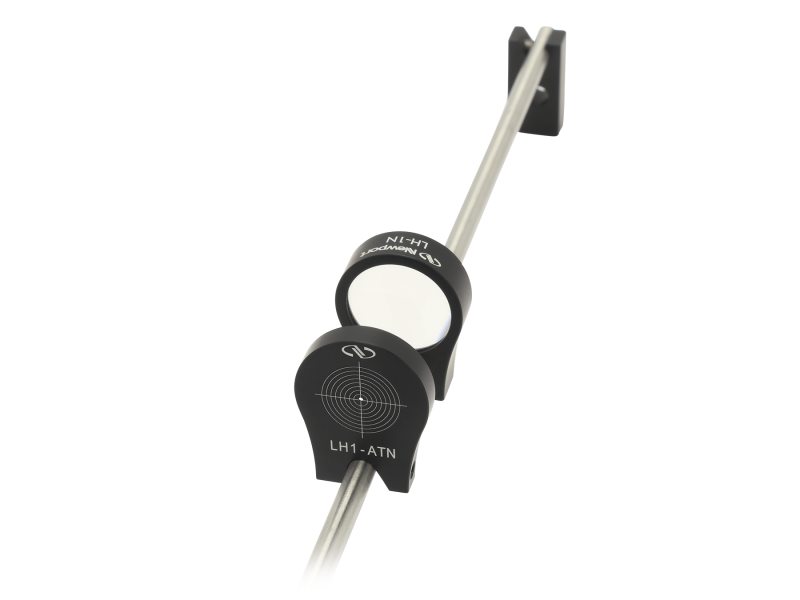

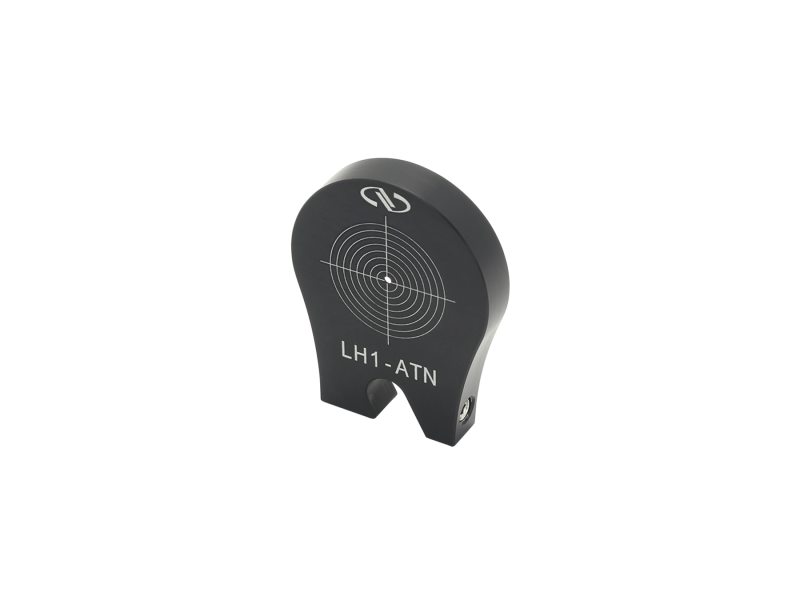

The drop-in alignment target is a convenient tool for aligning visible beams in our A-Line optics system. Made from anodized aluminum, it provides a through hole at the center with clear markings with graduation on both the X and Y axes.
Resources & Downloads
2D Product Drawings
LH1-ATN.PDF(42.7 kB, PDF)
Other
MKS RoHS2-2021 Alignment Targets.pdf(752.8 kB, PDF)
