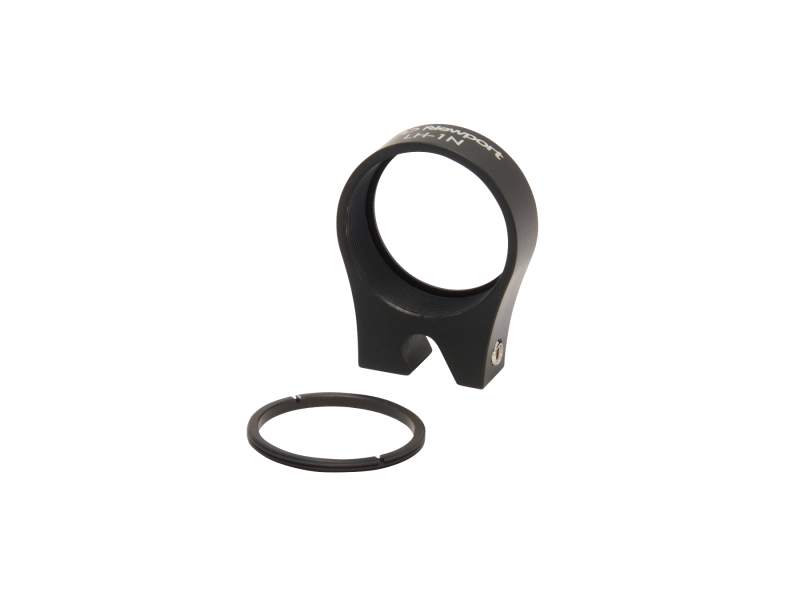

Lens Mount, Insertable, 25.4 mm Diameter, A-LINE

a-line fixed lens mounts with multiple lens mount sizes shown

Model: LH-1N

$28

In Stock

Compare

Add to List

Product Series Overview

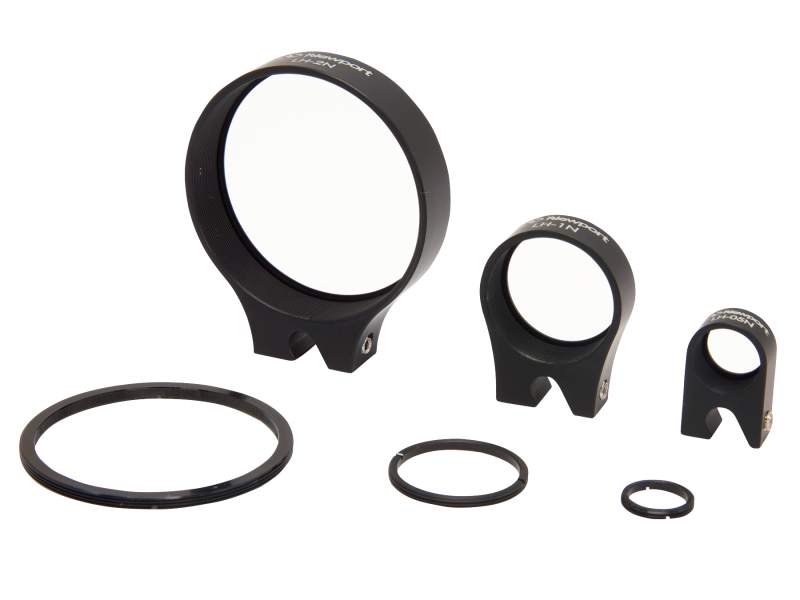

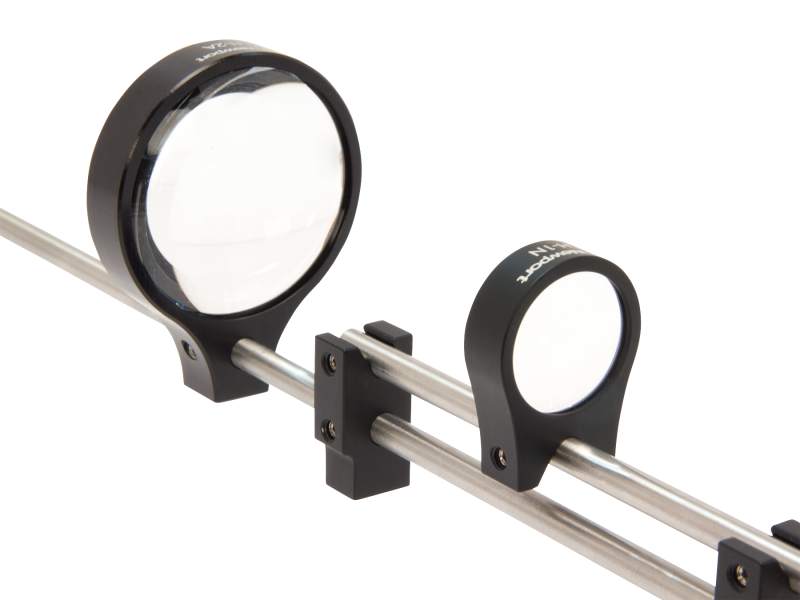

A-Line™ Insertable Fixed Lens Mounts

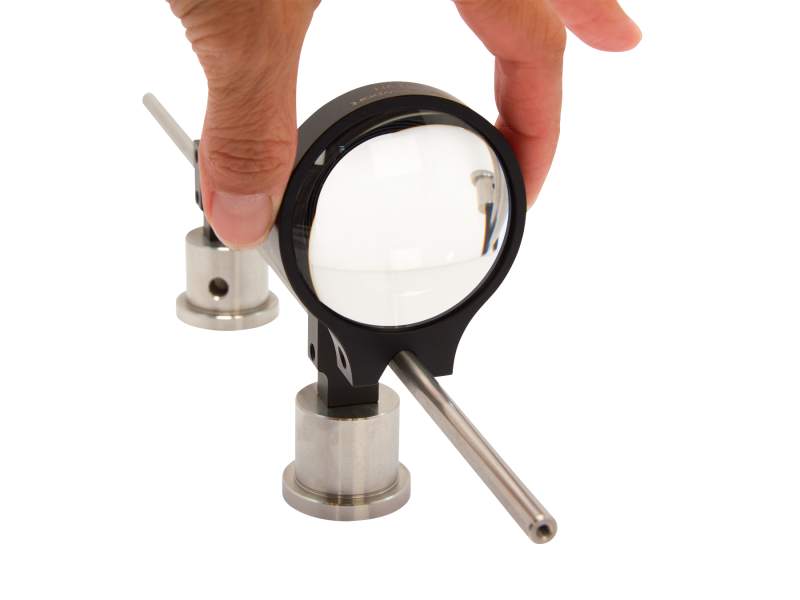

The A-LINE™ LH-1N Lens Mount is an insertable holder for mounting Ø1 in. (25.4 mm) lenses and beamsplitters. The lens mount has a unique angled slot to allow it to be inserted amongst a row of rod-mounted A-Line lens holders. This feature allows the user to easily add and remove lens from the middle of a beam path with out disassembly.

Specifications

Technical Specs

Type

Fixed Lens Mount
Optic Diameter

25.4 mm
Adjustments

Fixed
Edge Thickness (T_e)

10 mm
Optical Axis Height

19.1 mm

Thread Type

Insertable
Optic Retaining Thread

1.035‐40
Clear Aperture

22.9 mm

Type

Fixed Lens Mount
Optic Diameter

25.4 mm
Adjustments

Fixed
Edge Thickness (T_e)

10 mm
Optical Axis Height

19.1 mm

Thread Type

Insertable
Optic Retaining Thread

1.035‐40
Clear Aperture

22.9 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-1N-355 (336.3 kB, PDF)

Other

LH-1N RoHS Certificate (278.4 kB, PDF)
LH-1N_RoHS2021.pdf (681.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	In Stock	$67
LT10-WR Spanner Wrench, 1 inch LT Series Lens Tubes	UNIVERSAL	In Stock	$30
LT10-RR Retaining Ring, 22.9 mm ID, 1.035-40 Thread	UNIVERSAL	Show	$7.40
LH1-ATN Alignment Target, Insertable, A-Line	UNIVERSAL	In Stock	$33

Similar

Description	Compatibility	Avail.	Price
LH-1XY XY Lens Mount, Insertable, 25.4 mm, A-LINE	UNIVERSAL	In Stock	$180
LH-1T Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	In Stock	$20
AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms	UNIVERSAL	In Stock	$56
LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$35
LH-CMT Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$35

Compatible

Description	Compatibility	Avail.	Price
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	UNIVERSAL	In Stock	$16.90
LH-GR-1 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 1 in. Length, A-LINE	UNIVERSAL	In Stock	$11.60
LH-GR-2 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE	UNIVERSAL	In Stock	$13.20
LH-GR-8 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE	UNIVERSAL	In Stock	$25
LH-GR-10 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE	UNIVERSAL	In Stock	$29
