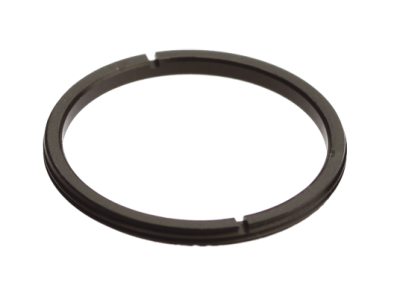

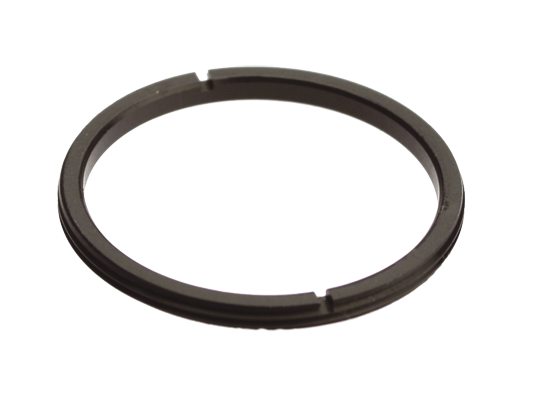

Retaining Ring, 22.9 mm ID, 1.063-20 Thread
Retaining Ring, 22.9 mm ID, 1.063-20 Thread
Model: A-1.25-1RR-L
Product Series Overview
Adaptors and Retaining RingsThe A-1.25-1RR-L Optical Retaining Ring is made of aluminum and has a 0.90 in. Clear Aperture. It has a 1.063-20 thread which is standard on most Newport 1 in. lens mounts.
Resources & Downloads
Other
A-1.25-1RR-L RoHS Certificate(279.4 kB, PDF) A-1-25-1RR-L_RoHS2021.pdf(688.5 kB, PDF)
2D Product Drawings
A-1_25-1RR-L dwg.pdf(71.6 kB, PDF)
