Optical Rail Carrier, 76.2 mm, for 9731/9732 Optical Rails, M4 & M6

Model: 9742-M

$141

In Stock

Compare

Add to List

Product Series Overview

76 mm Quick Release Optical Rail System

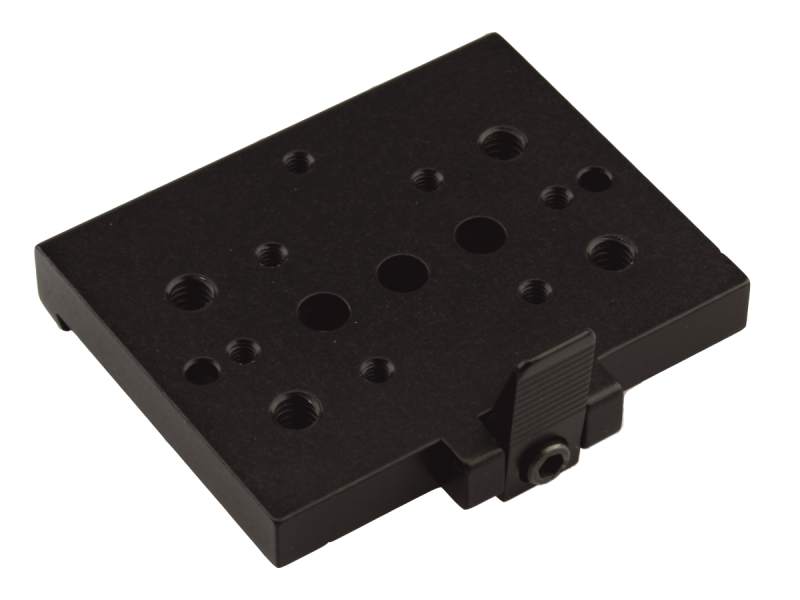

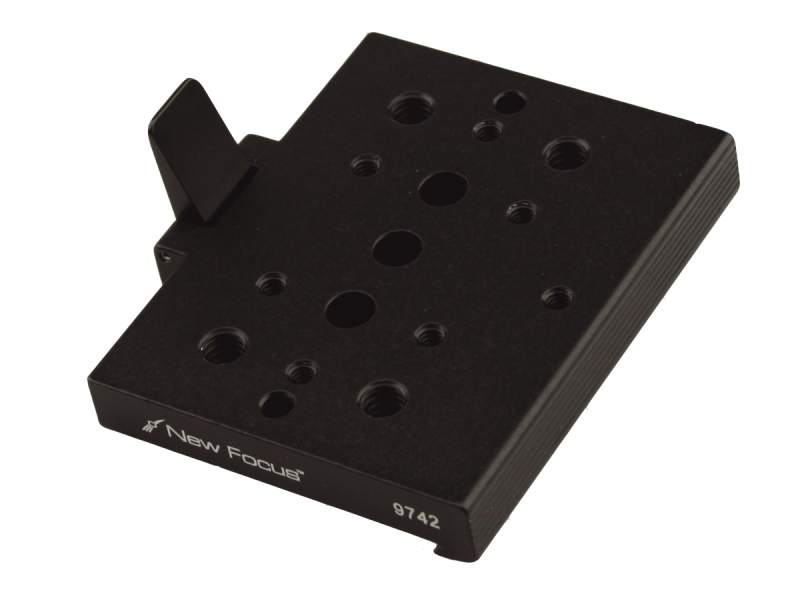

The 9742-M Quasi-kinematic, quick-release Rail Carrier has a spring-loaded lever that allows it to be locked in place without introducing motion. An M4 screw permanently locks the carriers. Model 9742-M has an array of M4 and M6 threaded and counterbored holes and is 79.9 mm long. It works with 9731 or 9732 optical rails.

Specifications

Technical Specs

Type

Rail Carrier
Thread Type

M4, M6
Height

28.7 mm

Length

76.2 mm
Width

66.0 mm

Type

Rail Carrier
Thread Type

M4, M6
Height

28.7 mm

Length

76.2 mm
Width

66.0 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9742M_RC_f (485.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
C-0.5 Post Collar, 0.5 in. Diameter Optical Posts	UNIVERSAL	In Stock	$9.20
SP-3 Optical Post, 3.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	3 Weeks	$6
SP-2 Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$6
VPH-2 Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$17
VPH-3 Optical Post Holder, No Slip, 3.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$18

Similar

Description	Compatibility	Avail.	Price
9743-M Optical Rail Carrier, 25.4 mm, 9731/9732 Optical Rails, M4	METRIC	In Stock	$90
M-CN26-40 Optical Rail Carrier, 40 mm Length, M6 Thread, X26 Series	METRIC	In Stock	$133
9741-M Optical Rail Carrier, 25.4 mm, for 9731/9732 Optical Rails, M6 C-Bore	METRIC	In Stock	$112
M-CXL48-50 Optical Rail Carrier, X48, 50 mm Length, M3, M4, and M6 Thread	METRIC	In Stock	$183
M-PRC-3 Optical Rail Carrier, 88.9 mm Length, M6 Thread, PRL Series	METRIC	In Stock	$133
