Optical Rail, 3.0 in. Width, 12 in. Length

76 mm Quick Release Optical Rail System

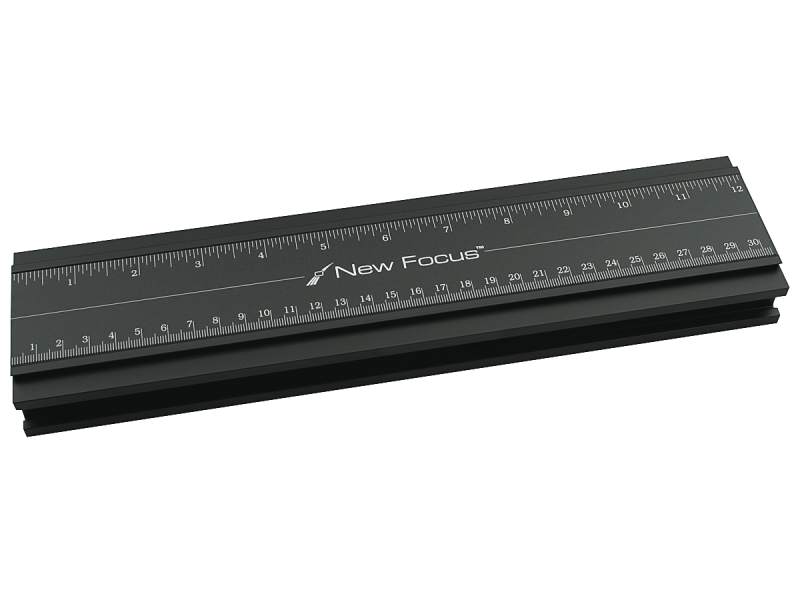

The 9731 Low-cost Optical Rails from New Focus, weigh 10 oz./ft. (1.8 kg/m), yet they are rigid enough for portable setups. For your convenience, there are both metric and English scales on each rail. The 9731 optical rail has a 12 inch length.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
304.8 mm
Height
26.92 mm
Length
304.8 mm

Width
76.2 mm

Type
Optical Rail
Rail Length
304.8 mm
Height
26.92 mm
Length
304.8 mm

Width
76.2 mm
