Optical Rail Carrier, 88.9 mm Length, M6 Thread, PRL Series
Optical Rail Carrier, 88.9 mm Length, M6 Thread, PRL Series
Model: M-PRC-3
Product Series Overview
Precision 100 mm Dovetail Optical RailsThe M-PRC-3 Carrier is are easy to use and is compatible with PRL Series dovetail rails. The rail/carrier system is designed to provide maximum versatility in minimum table space.

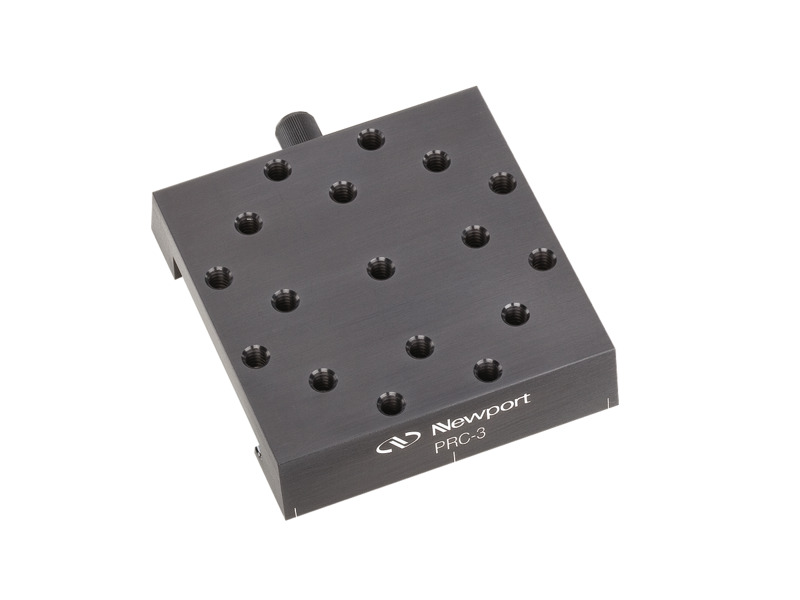

This 88.9 mm wide carrier has M6 holes and may be removed or installed at any point on the rail. The aluminum carriers ride on extra-hard polymer pads, selected for low friction, resistance to cold flow, and long life. The overall nominal height of a carrier mounted on to a rail is 31.9 mm. Convenient thumb-adjust lock knobs securely clamp the carriers in place anywhere on the rail.
This 88.9 mm wide carrier has M6 holes and may be removed or installed at any point on the rail. The aluminum carriers ride on extra-hard polymer pads, selected for low friction, resistance to cold flow, and long life. The overall nominal height of a carrier mounted on to a rail is 31.9 mm. Convenient thumb-adjust lock knobs securely clamp the carriers in place anywhere on the rail.
Precision Dovetail Design for Sturdy Hold and Excellent Linearity
The PRL Series Precision Dovetail Optical Rail system maintains a low profile with its 3.93 in. (99.8 mm) wide base to provide a sturdy hold of carriers with a combined height of 1.26 in. (31.9 mm). The precision-machined, anodized aluminum dovetail construction provides smooth and easy-to-use carrier translation with a straightness of 0.001 in over 8 in. (25 µm over 25 cm).
Four Optical Rail Lengths Available
Optical rails come in 6.00 in (16.7 cm), 12.5 in. (31.7 cm), 24.3 in. (61.7 cm) and 36.5 in (92.7 cm) lengths and are compatible with English or metric table hole patterns.
Resources & Downloads
2D Product Drawings
PRC-3ART-S(86.4 kB, PDF)
Other
MKS EU ROHS3 - PRX PRC Rail Carriers(223 kB, PDF)
