Rail Indexing Block, 0.5 in. (12.7 mm) Length, No Holes, PRL Series
Rail Indexing Block, 0.5 in. (12.7 mm) Length, No Holes, PRL Series
Model: PRX
Product Series Overview

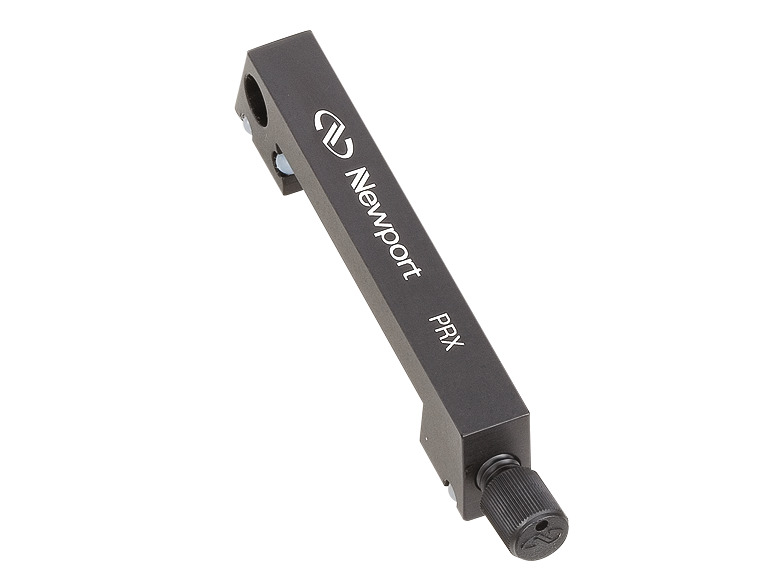

Precision 100 mm Dovetail Optical RailsThe PRX Index Block is are easy to use and is compatible with PRL Series dovetail rails. The rail/carrier system is designed to provide maximum versatility in minimum table space. This index block has no holes and is 0.5 inch (12.7 mm) wide.
Precision Dovetail Design for Sturdy Hold and Excellent Linearity
The PRL Series Precision Dovetail Optical Rail system maintains a low profile with its 3.93 in. (99.8 mm) wide base to provide a sturdy hold of carriers with a combined height of 1.26 in. (31.9 mm). The precision-machined, anodized aluminum dovetail construction provides smooth and easy-to-use carrier translation with a straightness of 0.001 in over 8 in. (25 µm over 25 cm).
Four Optical Rail Lengths Available
Optical rails come in 6.00 in (16.7 cm), 12.5 in. (31.7 cm), 24.3 in. (61.7 cm) and 36.5 in (92.7 cm) lengths and are compatible with English or metric table hole patterns.
Specifications
- TypeRail Carrier
- Height19.1 mm
- Length12.7 mm
- Width106.7 mm
- MaterialAluminum
Resources & Downloads
Other
MKS EU ROHS3 - PRX PRC Rail Carriers(223 kB, PDF)
