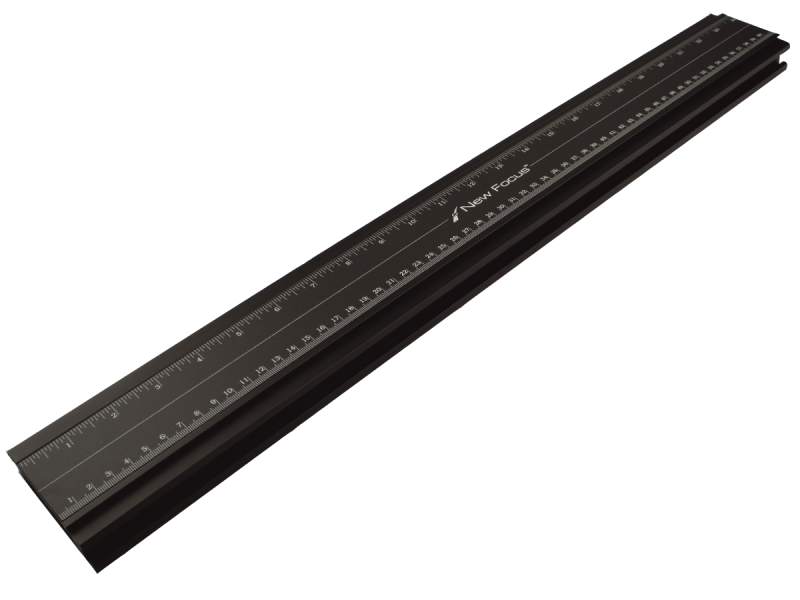

9732 Optical Rail

Optical Rail, 3.0 in. Width, 24 in. Length

Model: 9732

$155

In Stock

Compare

Add to List

Product Series Overview

76 mm Quick Release Optical Rail System

The 9732 Low-cost Optical Rails from New Focus, weigh 10 oz./ft. (1.8 kg/m), yet they are rigid enough for portable setups. For your convenience, there are both metric and English scales on each rail. The 9731 optical rail has a 24 inch length.

Specifications

Technical Specs

Type

Optical Rail
Rail Length

609.6 mm
Height

26.92 mm

Length

610 mm
Width

76.2 mm

Type

Optical Rail
Rail Length

609.6 mm
Height

26.92 mm

Length

610 mm
Width

76.2 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

900730c1 (438.7 kB, PDF)
900731d1 (434.3 kB, PDF)
