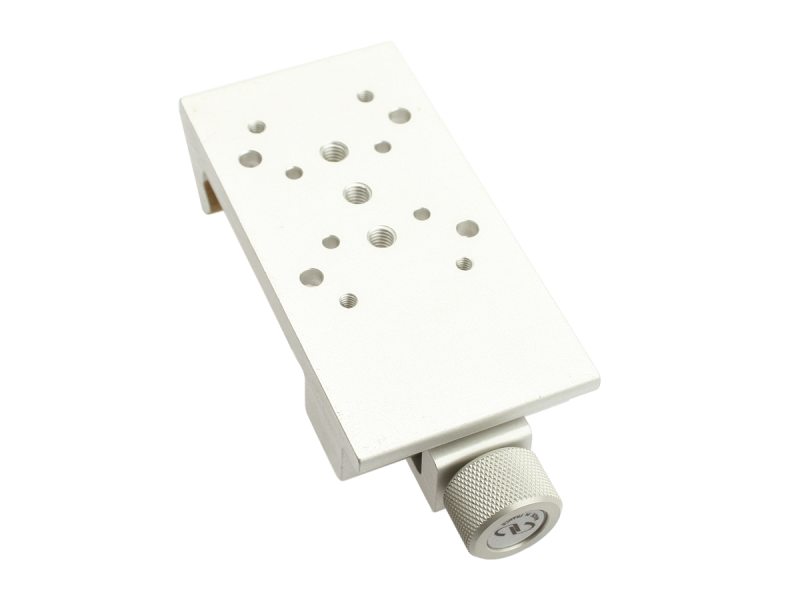

Optical Rail Carrier, X48, 50 mm Length, M3, M4, and M6 Thread
Optical Rail Carrier, X48, 50 mm Length, M3, M4, and M6 Thread
Model: M-CXL48-50
Product Series Overview
48 mm Aluminum Four-Sided Optical RailsThe M-CXL48-50 Rail Carrier enables fast, easy mounting and secure clamping of components at any point along the X48 rail. The M-CXL48-50 Carrier is specially designed to support positioners with the 50 mm module size. Knurled knobs are used to securely clamp the carriers to the rail. A unique clamp design eliminates contact between the screw shaft and the rail for smoother sliding, more stable positioning, and prevention of possible rail damage from over-tightening. M6, M4 and M3 holes.
Resources & Downloads
2D Product Drawings
CXL48-50D-S(91.9 kB, PDF)
