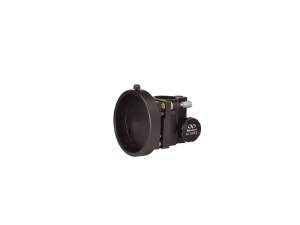

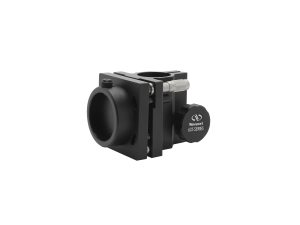

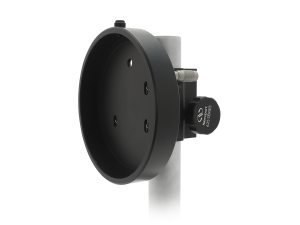

Rod-Mount Kinematic Mirror Mounts

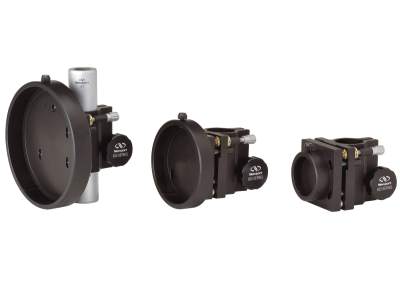

Our 625-RC Series mirror mounts are rod-mountable devices that provide vertical positioning flexibility and convenience for large diameter mirrors. Three diameters are available – 2 in. (50.8 mm), 4 in. (101.6 mm), and 6 in. (152.4 mm) – and angular adjustment is achieved with either high precision adjustment screws or micrometers.

Precise beam positioning for large mirrors
Front surface of mirror lines up over table hole pattern
Orthogonal 10° angular adjustment range
Access hole located on back of mount for quick and easy mirror removal

See All Features

Description	Compatibility	Optic Diameter	Drive Type	Avail.	Price
625-RC2Mirror Mount, 1.5 in. Post Mounted, 2.0 in. Diameter, Knob Adjustment	UNIVERSAL	50.8 mm	Knob, locking	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$491
625-RC4Mirror Mount, 1.5 in. Post Mounted, 4.0 in. Diameter, Knob Adjustment	UNIVERSAL	101.6 mm	Knob, locking	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$536

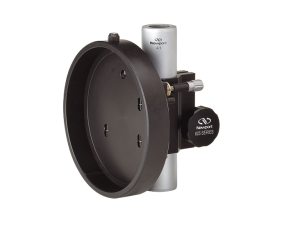

625-RC6Mirror Mount, 1.5 in. Post Mounted, 6.0 in. Diameter, Knob Adjustment	UNIVERSAL	152.4 mm	Knob, locking	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$698
625-RC2-MMirror Mount, 38.1 mm Post Mounted, 50.8 mm Diameter, Micrometer	UNIVERSAL	50.8 mm	Micrometer	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$594

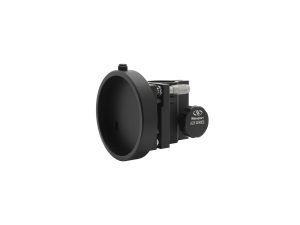

625-RC4-MMirror Mount, 38.1 mm Post Mounted, 101.6 mm Diameter, Micrometer	UNIVERSAL	101.6 mm	Micrometer	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$638
625-RC6-MMirror Mount, 38.1 mm Post Mounted, 152.4 mm Diameter, Micrometer	UNIVERSAL	152.4 mm	Micrometer	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$740

Features

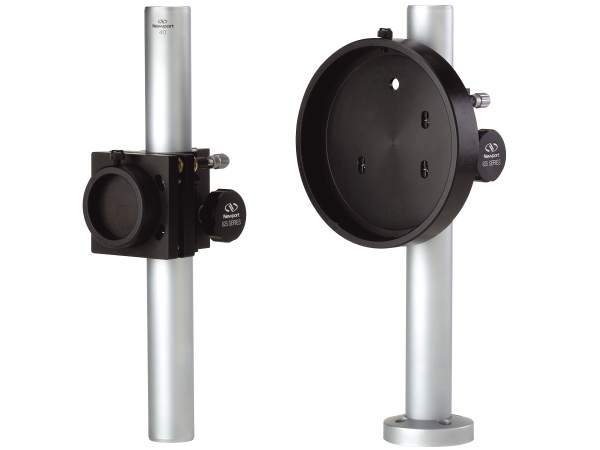

Compatible with Optical Support Rods

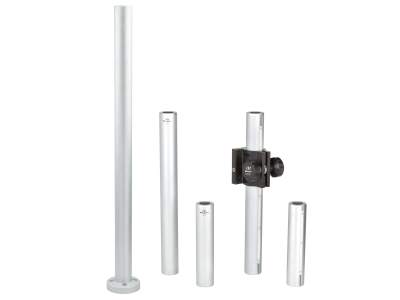

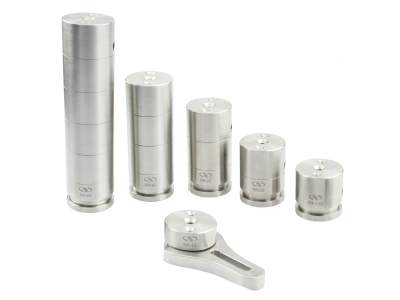

These mounts feature stable kinematic design with hardened kinematic contacts at all three support points. They are compatible with the heavy duty optical rods as well as SR-series magnetic base optical pedestals.

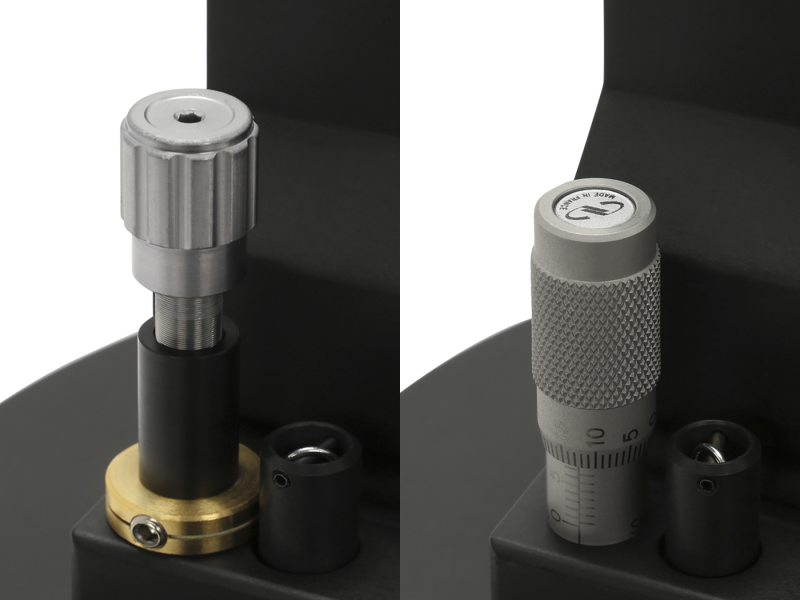

Micrometer and Adjustment Screw Versions

The standard versions are configured with 100-TPI precision AJS-series Adjustment Screws. Where a direct reading is desired, SM Micrometer versions are available simply by appending "-M" to the part number.

Accessories

Description	Compatibility	Avail.	Price
A-2-1Optical Mount Adaptor, 50.8 mm to 25.4 mm (2 to 1 inch)	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$78
A-2-1.5Optical Mount Adaptor, 50.8 mm to 38.1 mm (2 to 1.5 inch)	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$82

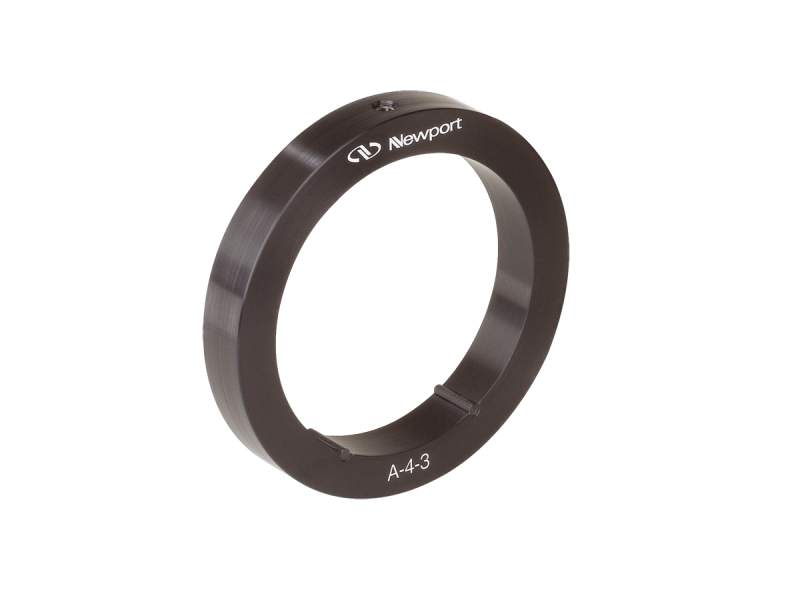

A-4-3Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)	UNIVERSAL	5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$140
