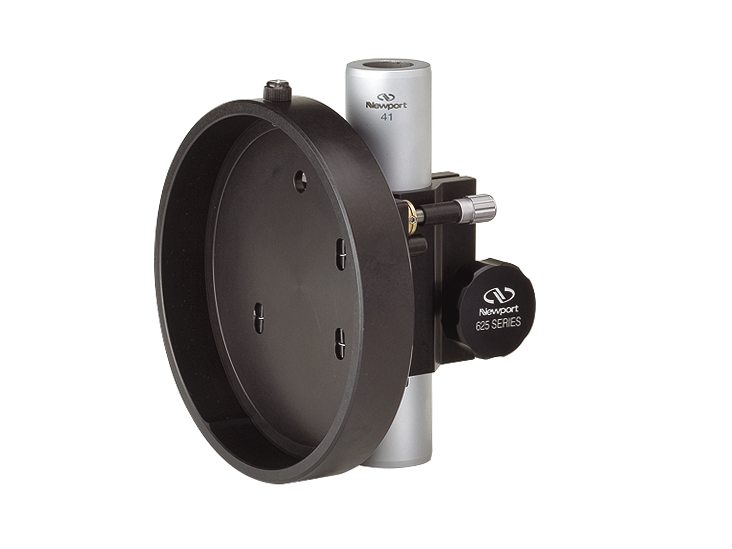

Mirror Mount, 1.5 in. Post Mounted, 6.0 in. Diameter, Knob Adjustment
Mirror Mount, 1.5 in. Post Mounted, 6.0 in. Diameter, Knob Adjustment
Model: 625-RC6
Product Series Overview

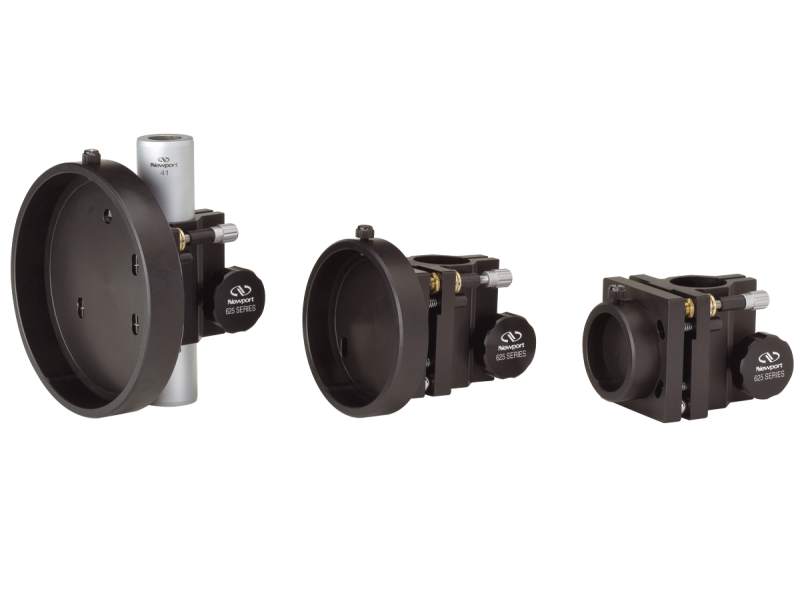

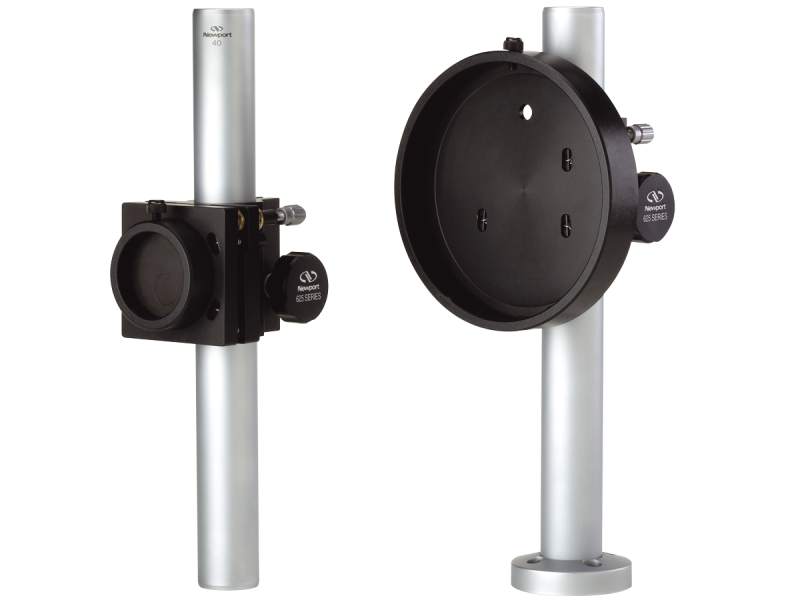

Rod-Mount Kinematic Optical MountsThe 625-RC6 Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 6.0 in. diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two high precision AJS Adjustment Screws for a ±10° adjustment range.
Resources & Downloads
2D Product Drawings
625-RC6-DWG-S.pdf(89.7 kB, PDF)
Other
625-RC6 RoHS Certificate(284.5 kB, PDF) REACH Supplier Statement - 625-RC6(191 kB, PDF)
