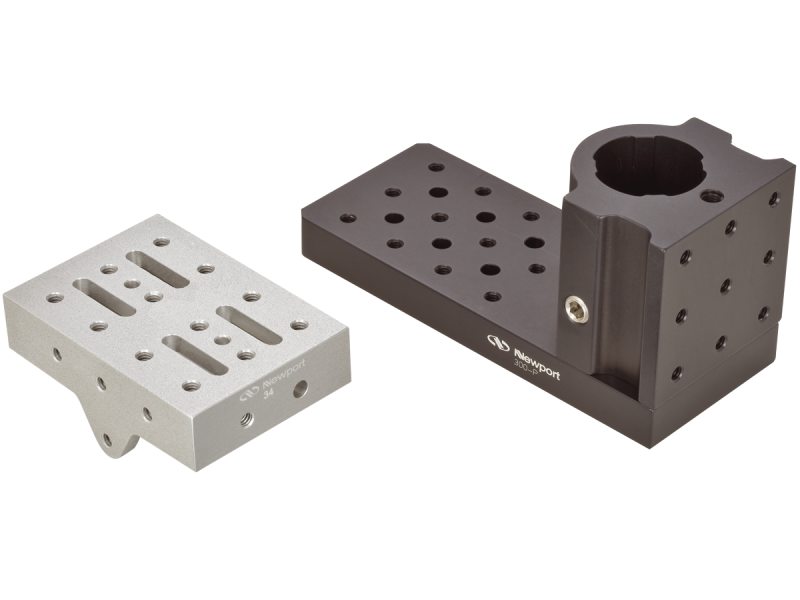

Newport's rod platforms provide mounting surfaces with a variety of customizable orientations and heights to optical support rods. The 300-P Rod Platform is made of solid aluminum and features surfaces both parallel and perpendicular to the post axis onto which components can be directly mounted. A separate fine positioner accessory provides fine height adjustment to the 300-P. For the most versatility in mounting architectures and rotations, the Model 34 Rotatable Rod Platform allows the mounting of components at arbitrary angles
- Mounting platforms offering a variety of surface orientations
- Rod mounted platform and adapters lock in place at any height
- Adapter provides fine height adjustment See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 300-POptical Post Platform, 1.5 in. Diameter Posts, 3 Mounting Surfaces, 1/4-20 | In Stock | ||||
 | 32AOptical Post Positioner, Cap Screw, 0.7 in. Adjustment, 1.5 in. Post, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 34Rotatable Post Platform, Arbitrary Angle Mounting, 1.5 in. Post, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-300-POptical Post Platform, 38.1 mm Diameter Post, 3 Mounting Surfaces, M6 | In Stock | ||||
| M-32AOptical Post Positioner, Cap Screw, 18 mm Adjustment, 38.1 mm Post, M6 | In Stock | ||||
 | M-34Rotatable Post Platform, Arbitrary Angle Mounting, 1.5 in. Post, M6 | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Perpendicular and Parallel Mounting Surfaces

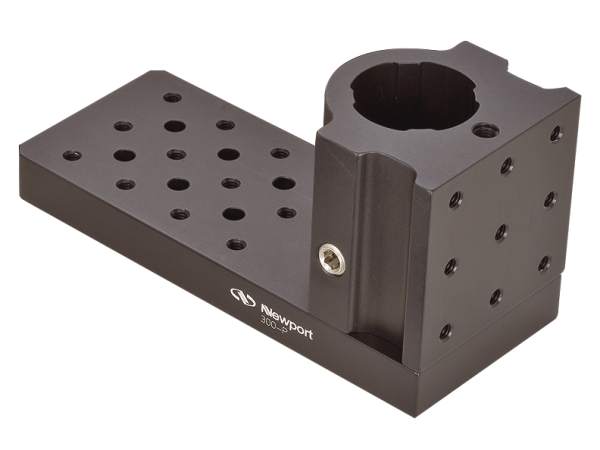

The 300-P Rod Platform, made of solid aluminum, provides a versatile foundation for mounting optical components. It has surfaces both parallel and perpendicular to the post axis to which components can be mounted directly with an array of threaded holes. The platform clamp is double-bored, forming two line contacts with Models (M-) 40 , (M-) 41, 42 or 45 supporting rods to prevent wobble once the locking screw is tightened, securing the platform in place.
Rotatable Platforms for Customizable Orientations

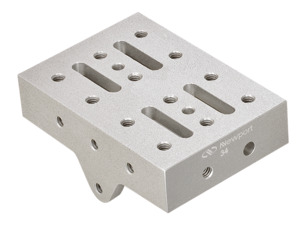

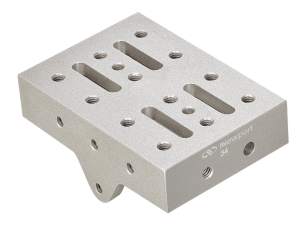

The Model 34 Rotatable Platforms provide the most versatility to mounting architectures and orientations. Commonly used in conjunction with the Model 340-RC and 370-RC Clamps, the end of this platform features a circular slot focused around a clearance hole to offer 360° positioning and attachment to other platform surfaces. With the 340-/370-RC, this positioning can be secured in 90° steps with two bolts. The platforms may also be joined end-to-end or side-to-end for an even wider variety of orientations. The Model 34 platform has 1/4-20 threaded holes for mounting optical components at the arbitrary angles it accommodates.
Fine Platform Height Adjustment

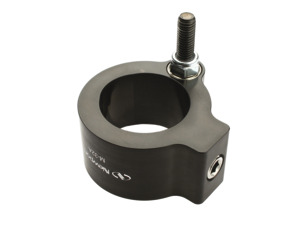

The 32A Optical Support Rod Fine Positioner provides fine height adjustment to the Model 300-P platform, using a screw which engages the matched 1/4-20 tapped hole in either end of the platform clamp. The adjustment screw provides a travel range of 0.7 in. (18 mm) along the rod axis owing its smooth rotation to a set of thrust ball bearings located in the clamp body.
