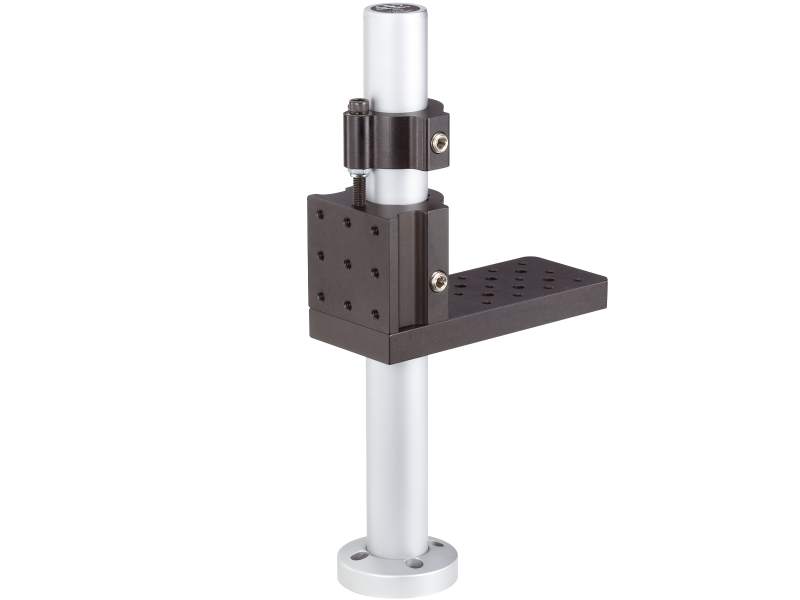

Optical Post Platform, 1.5 in. Diameter Posts, 3 Mounting Surfaces, 1/4-20

Model: 300-P

$264

In Stock

Compare

Add to List

Product Series Overview

Optical Support Rod Platforms

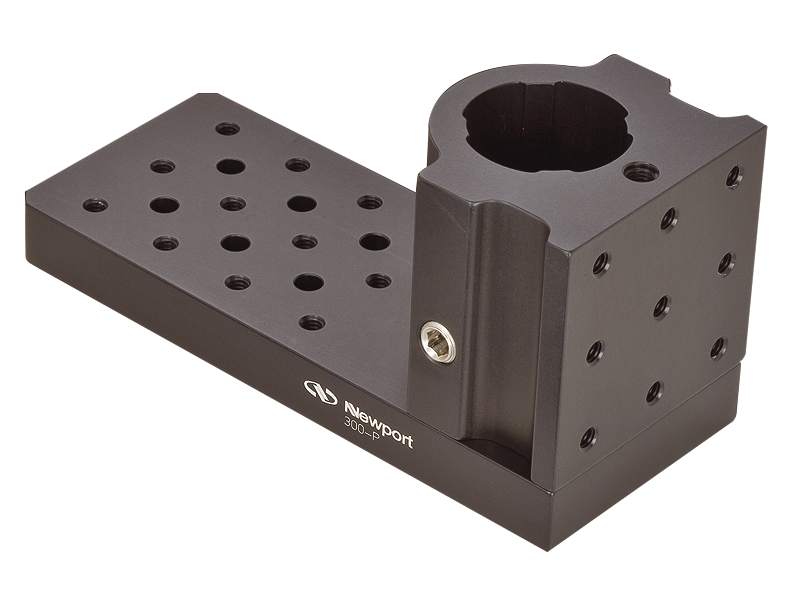

The 300-P Optical Rod Platform has three machined mounting surfaces: one parallel to the post axis and two perpendicular to it. The platform clamp is double-bored, forming two line contacts along the bore to assure wobble-free clamping when the locking screw is tightened.

Specifications

Technical Specs

Type

Rod Platform
Thread Type

1/4-20

Inside Diameter

38.1 mm

Type

Rod Platform
Thread Type

1/4-20

Inside Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

300-P-S (103.7 kB, PDF)

Other

300-P RoHS Certificate (278.8 kB, PDF)
