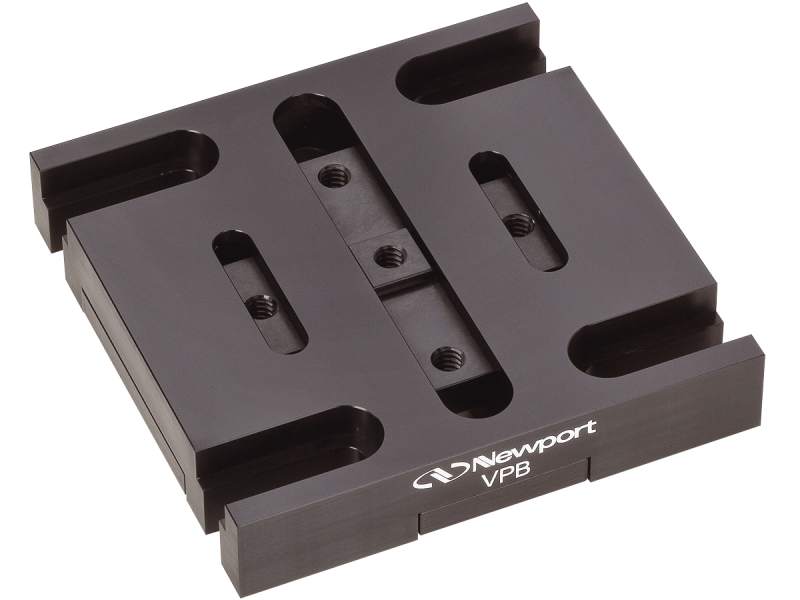

XY Adjustable Base, 1/4-20 Thread

Model: VPB

$280

In Stock

Compare

Add to List

Product Series Overview

1.5 in. Optical Rod Bases

The VPB Adjustable Platform is a stiff, low-profile adjustable base designed for stable mounting of Newport rods and components anywhere on our optical tables and breadboards. The VPB has XY sliding adjustments for complete positioning freedom on any mounting surface with a standard pattern of 1/4-20 mounting holes on 1.0 in centers.

Specifications

Technical Specs

Type

XY Platform Base
Height

19.1 mm
Thread Type

1/4-20

Material

Aluminum

Type

XY Platform Base
Height

19.1 mm
Thread Type

1/4-20

Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

VPB DWG-S (91.2 kB, PDF)

Other

VPB RoHS Certificate (280.1 kB, PDF)
MKS EU RoHS3 - VPB and M-VPB (230.2 kB, PDF)
