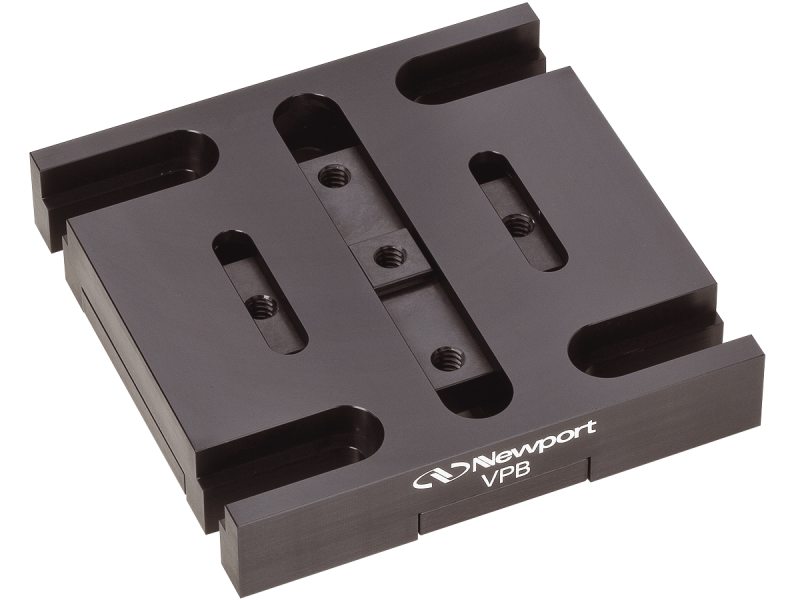

XY Adjustable Base, M6 Thread
The M-VPB Adjustable Platform is a stiff, low-profile adjustable base designed for stable mounting of Newport rods and components anywhere on our optical tables and breadboards. The VPB has XY sliding adjustments for complete positioning freedom on any mounting surface with a standard pattern of M6 mounting holes on 25.4 mm centers.
Resources & Downloads
2D Product Drawings
VPB DWG-S(91.2 kB, PDF)
Other
M-VPB RoHS Certificate(278.5 kB, PDF) M-VPB_RoHS2021.pdf(681.1 kB, PDF) MKS EU RoHS3 - VPB and M-VPB(230.2 kB, PDF)
