Near Infrared (NIR) Sensor Cards

Easily locate and analyze light beams in the 700-1700 nm wavelength range with these pocket-sized, low cost alternatives to an IR viewer. Different sizes with F-IRC-CUSTOM quote request.

Wavelength coverage from 700 nm to 1700 nm
Protective plastic coating for durability and portability
Large sensor area
Customizable - Add your logo and contact information

See All Features

Show Filters:

Showing 7 of 7 total products

Compatibility:

Description	Compatibility	Type	Wavelength Range	Sensor Size	Damage Threshold	Minimum Detectable Power	Avail.	Price
F-IRC1IR Sensor Card, 750-1350 nm, 2 in. Square Sensor	UNIVERSAL	IR Sensor Card	750 - 1350 nm	50 x 50 mm	700 mW/cm²	12 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$200

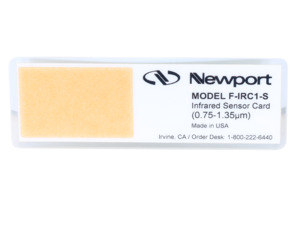

F-IRC1-SIR Sensor Card, 750-1350 nm, 1 in. x 1.5 in. Sensor	UNIVERSAL	IR Sensor Card	750 - 1350 nm	25.4 x 38.1 mm	700 mW/cm²	12 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$110
F-IRC2IR Sensor Card, 800-1700 nm, 2 in. Square Sensor	UNIVERSAL	IR Sensor Card	800 - 1700 nm	50 x 50 mm	700 mW/cm²	8 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$200

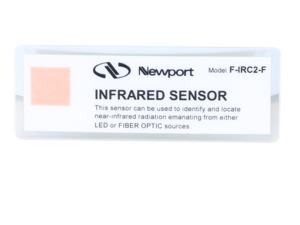

F-IRC2-FIR Sensor Card, 800-1700 nm, 0.5 in. Square Sensor	UNIVERSAL	IR Sensor Card	800 - 1700 nm	12.5 x 12.5 mm	700 mW/cm²	8 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$67

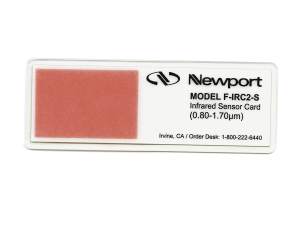

F-IRC2-SIR Sensor Card, 800-1700 nm, 1 in. x 1.5 in. Sensor	UNIVERSAL	IR Sensor Card	800 - 1700 nm	25.4 x 38.1 mm	700 mW/cm²	8 µW/cm²	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$110

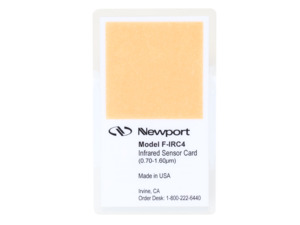

F-IRC4IR Sensor Card, 700-1600 nm, 2 in. Square Sensor	UNIVERSAL	IR Sensor Card	700 - 1600 nm	50 x 50 mm	700 mW/cm²	3 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$215

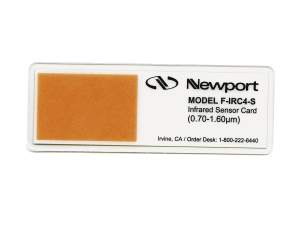

F-IRC4-SIR Sensor Card, 700-1600 nm, 1 in. x 1.5 in. Sensor	UNIVERSAL	IR Sensor Card	700 - 1600 nm	25.4 x 38.1 mm	700 mW/cm²	3 µW/cm²	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$125

Notes:

We also offer custom versions of these IR cards.

Features

Wavelength Coverage From 700 to 1700 nm

These viewing cards contain a phosphor-coated sensor area that emits clearly visible light when illuminated by NIR sources. This allows for the easy location of near-infrared beams and their focal point, even in the dark, and the visualization of spatial mode patterns.

Protective Plastic Coating for Durability

The UV sensor cards features a protective polyester coating for durability and portability.

Large Sensor Area

The standard sized card has a 2 inch (50 mm) square sensor area for locating and analyzing light beams within the specified wavelength range. These are also available in smaller versions.
