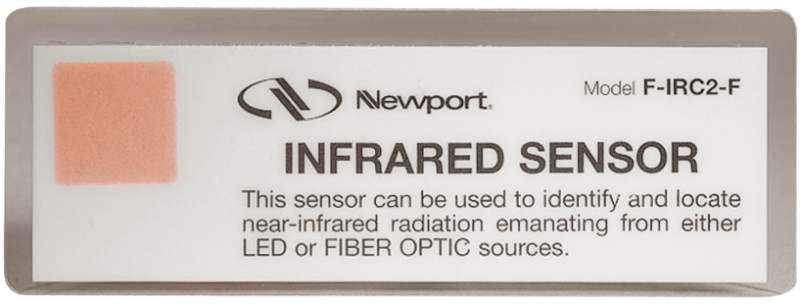

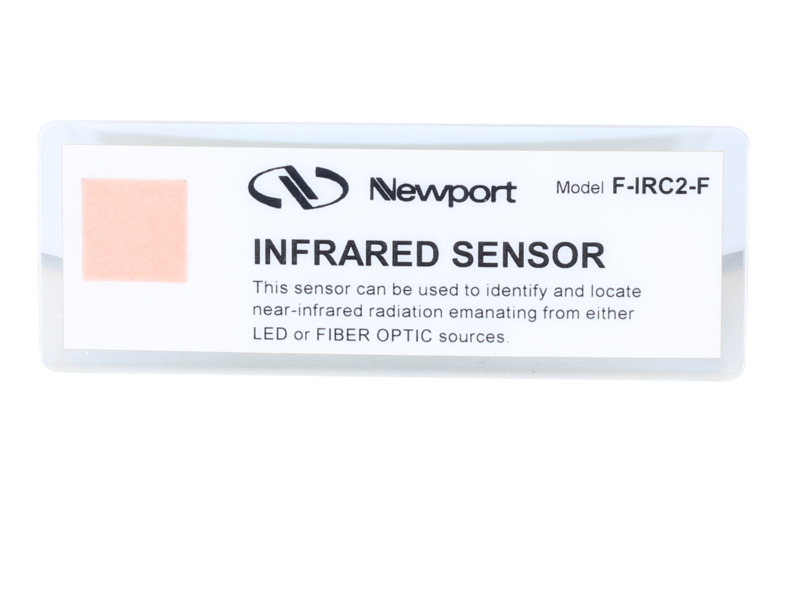

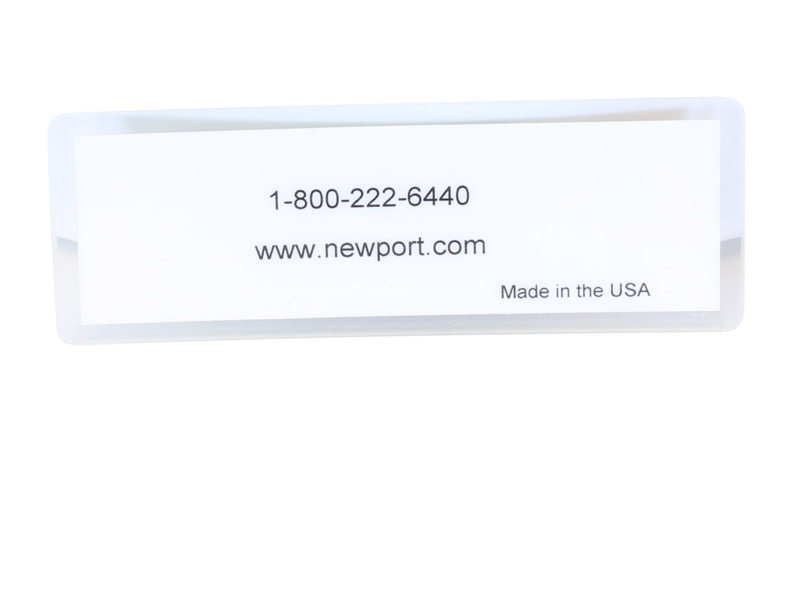

F-IRC2-F IR Sensor Card

IR Sensor Card, 800-1700 nm, 0.5 in. Square Sensor

Model: F-IRC2-F

$67

In Stock

Compare

Add to List

Product Series Overview

Near Infrared (NIR) Sensor Cards

Easily locate and analyze fiber optic light beams in the 800-1700 nm wavelength range with this pocket sized, low-cost alternative to an IR viewer. This IR viewing card contains a phosphor-coated sensor area that emits clearly visible light when illuminated by NIR and IR sources. This allows for the easy location of infrared beams and their focal point (even in the dark) and the visualization of spatial mode patterns. 0.5 inch square sensor area encapsulated between durable clear plastic layers, allowing for easy handling and carrying in your shirt pocket.

Wavelength Coverage From 700 to 1700 nm

These viewing cards contain a phosphor-coated sensor area that emits clearly visible light when illuminated by NIR sources. This allows for the easy location of near-infrared beams and their focal point, even in the dark, and the visualization of spatial mode patterns.

Protective Plastic Coating for Durability

The UV sensor cards features a protective polyester coating for durability and portability.

Specifications

Technical Specs

Type

IR Sensor Card
Wavelength Range

800 - 1700 nm
Sensor Size

12.5 x 12.5 mm
Damage Threshold

700 mW/cm²

Minimum Detectable Power

8 µW/cm²
Peak Emission Wavelength

650 nm / red
Dimensions

32 x 82 mm

Type

IR Sensor Card
Wavelength Range

800 - 1700 nm
Sensor Size

12.5 x 12.5 mm
Damage Threshold

700 mW/cm²

Minimum Detectable Power

8 µW/cm²
Peak Emission Wavelength

650 nm / red
Dimensions

32 x 82 mm
