Ultraviolet (UV) Sensor Cards
Ultraviolet (UV) Sensor Cards
Easily locate and analyze light beams in the 200-400 nm wavelength range with these pocket-sized, low cost alternatives to a UV viewer.
- Wavelength coverage from 200 nm to 400 nm
- Protective plastic coating for durability and portability
- Large sensor area See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-UVC1UV Sensor Card, 200-400 nm, 2 in. Square Sensor | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | F-UVC1-SUV Sensor Card, 200-400 nm, 1 in. x 1.5 in. Sensor | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
| Models | | | |
|---|---|---|---|
| Type | UV Sensor Card | UV Sensor Card | |
| Wavelength Range | 200 - 400 nm | 200 - 400 nm | |
| Sensor Size | 50 x 50 mm | 25.4 x 38.1 mm | |
| Damage Threshold | 700 mW/cm2 | 700 mW/cm2 | |
| Minimum Detectable Power | 80 µW/cm2 | 80 µW/cm2 | |
| Peak Emission Wavelength | 650 nm / red | 640 nm / deep orange | |
| Dimensions | 64 x 102 mm | 34 x 94 mm |
Features
200 nm to 400 nm UV Wavelength Coverage
These viewing cards contain a phosphor-coated sensor area that emits clearly visible light when illuminated by UV sources. This allows for the easy location of UV beams and their focal point, even in the dark, and the visualization of spatial mode patterns.
Protective Plastic Coating for Durability
The UV sensor cards features a protective polyester coating for durability and portability.

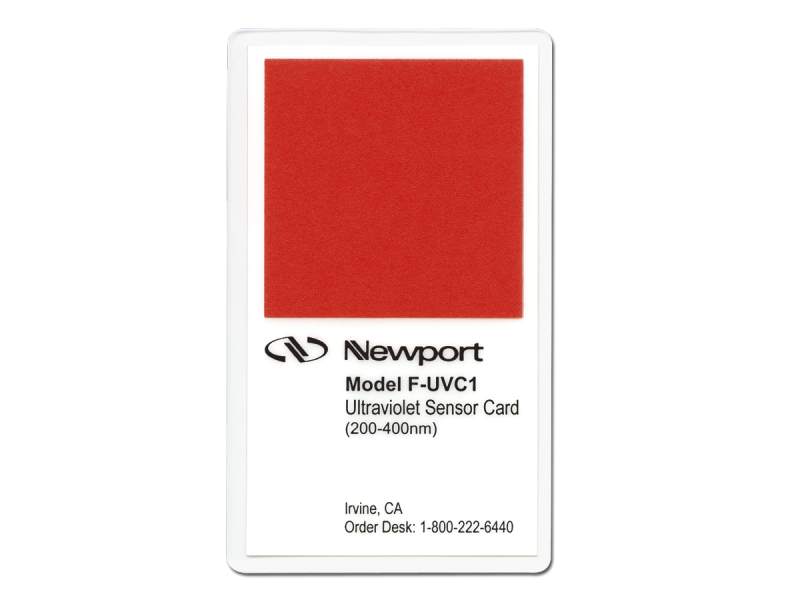

Large 50 mm Square Sensor Area

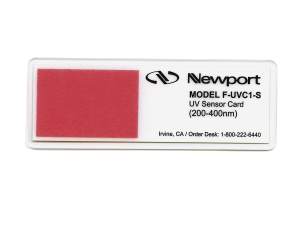

The larger F-UVC1 card has a 2 inch (50 mm) square sensor area for locating and analyzing light beams in the 200 to 400 nm wavelength range. These are also available in the smaller F-UVC1-S version.
