Liquid Filters for Light Sources

Liquid Filters are useful for applications in which infrared (IR) light is not required and its heating effect can cause a problem. When using a high powered light source (500 to 1600 W), liquid filters are almost a necessity if other optical components are being used.

280 to 950 nm light transmission
Filters unwanted IR light and resultant heat
Hose fittings provided for use with external cooling chamber
1.5 inch, 2 inch, and 3 inch flange sizes for easy coupling to Oriel light sources
1/4 - 20 hole for mounting by optical rod

See All Features

Show Filters:

Showing 3 of 3 total products

Compatibility:

Description	Compatibility	Type	Flange Series Size	Avail.	Price
6123NSLiquid Optical Filter, Aluminum, 2 Inch Series Light Sources	UNIVERSAL	Liquid Filter	2 Inch	In Stock	$1,145
61945Liquid Optical Filter, Aluminum, 1.5 Inch Series Light Sources	UNIVERSAL	Liquid Filter	1.5 Inch	In Stock	$1,045
6214Liquid Optical Filter, Aluminum, 3 Inch Series Light Sources	UNIVERSAL	Liquid Filter	3 Inch	3 Weeks	$1,555

Features

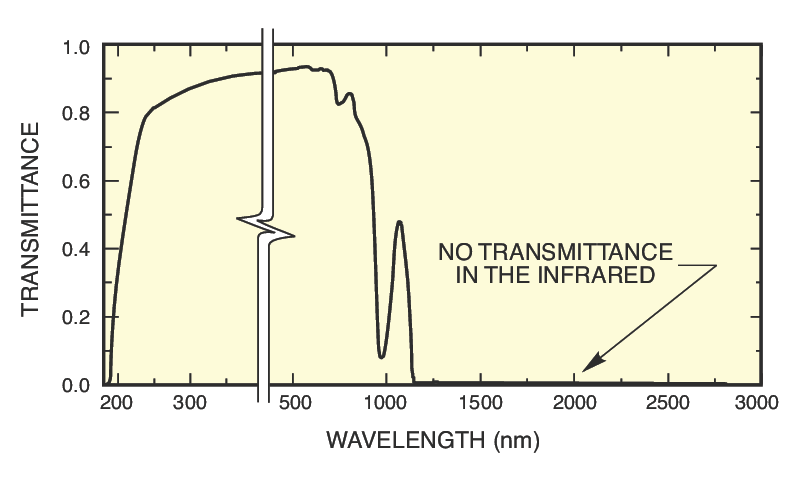

250 to 950 nm Transmission

These liquid filters consist of an aluminum body and two fused silica windows. Distilled water must be added to the filter for the IR filtering effect, as the weather absorbs the NIR radiation.

External Cooling Chamber

Hosing fittings are included with the liquid filter for coupling to the filter's external chamber. When using continuous light sources with power greater than 100 W, external cooling is required to remove the energy absorbed by the distilled water. For external cooling, tap water or water from a recirculating cooler can be used.

1.5 Inch, 2 Inch, and 3 Inch Flange Sizes for Easy Coupling to Oriel Light Sources

Oriel's® flange system consists of 1.5 inch, 2 inch, and 3 inch diameter flanges. A liquid filter is available for each flange size to provide a liquid filter option for any Oriel lamp housing.

61945 : 1.5 inch flange
6123NS : 2 inch flange
6214 : 3 inch flange

Each Liquid Filter also has a 1/4-20 tapped hole in its housing to allow for mounting with an Optical Rod.

Accessories

Flange Couplers and Adapters

Description	Compatibility	Avail.	Price
66290Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$500
77790Flange Converter, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	Contact Us	$560
66292Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female	UNIVERSAL	In Stock	$160
77792Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL	Contact Us	$95
77829Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw	UNIVERSAL	In Stock	$95
77791Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	In Stock	$300
LT10-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 1-Inch LT Series	UNIVERSAL	In Stock	$105
LT20-UADPTAdapter, Oriel^® 1.5-Inch Series Flange to Newport 2-Inch LT Series	UNIVERSAL	In Stock	$365
