With the wide range of accessories specifically designed for the 466A Series XYZ Flexure Stage, precision alignment of bare and connectorized fibers is adaptable to meet the needs even of obscure or constrained optical systems.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
466A-717 Optical Fiber Rotator, High Precision, 466A Series |
In Stock
|
$1,965 |
|
|||
|
466A-718 Optical Fiber Rotator, 466A Series |
In Stock
|
$1,197 |
|
|||
|
466A-709 Bare Fiber Holder, Single Arm, 466A Series |
In Stock
|
$409 |
|
|||
|
466A-710 Bare Fiber Holder, Dual Arm, 466A Series |
In Stock
|
$566 |
|
|||
|
466A-711 Bare Fiber Holder, Single Arm, Magnetic, 466A Series |
In Stock
|
$372 |
|
|||
|
466A-750 Bare Fiber Holder, Long Reach, 466A Series |
In Stock
|
$777 |
|
|||
|
466A-700 Ferrule Fiber Holder, 2 to 4.5 mm Diameter, 466A Series |
In Stock
|
$421 |
|
|||
|
466A-701 Ferrule Fiber Holder, 1 to 2 mm Diameter, 466A Series |
In Stock
|
$387 |
|
|||
|
466A-735 Optical Fiber holder, FC Connector, 466A Series |
In Stock
|
$426 |
|
|||
|
466A-736 Optical Fiber Holder, SMA Connector, 466A Series |
In Stock
|
$372 |
|
|||
|
466A-737 Optical Fiber holder, ST Connector, 466A Series |
In Stock
|
$353 |
|
|||
|
466A-734 Grin Lens Holder, 466A Series |
In Stock
|
$652 |
|
|||
|
466A-150 Objective Mount, 466A Series |
In Stock
|
$161 |
|
|||
|
466A-156 Extension Tube, for 466A-150 |
In Stock
|
$95 |
|
|||
|
466A-147 Large Fixed Bracket, Slot Length 60mm, 466A |
In Stock
|
$81 |
|
|||
|
M-466A-147 Fixed Bracket, Large, 60 mm Slot Length, M-466A |
In Stock
|
$81 |
|
|||
|
466A-148 Small Fixed Bracket, Slot Length 20mm, 466A |
In Stock
|
$81 |
|
|||
|
M-466A-148 Fixed Bracket, Small, 20 mm Slot Length, M-466A |
In Stock
|
$81 |
|
|||
|
466A-149 L-Shaped Bracket, Slot Length 46mm, 466A |
In Stock
|
$94 |
|
|||
|
M-466A-149 L-Shaped Bracket, Slot Length 46mm, M-466A |
In Stock
|
$94 |
|
|||
|
466A-189 Universal Stand, 466A Series |
In Stock
|
$212 |
|
|||
|
466A-752 Universal Base, 466A Series |
In Stock
|
$473 |
|
|||
|
466A-153 Component Plate, 466A Series |
In Stock
|
$27 |
|
|||
|
466A-154 Clamp Set, 466A Stage, Inc. 2 Clamps, 2 Screws & Allen Wrench |
In Stock
|
$31 |
|
|||
|
M-466A-154 Clamp Set, M-466A Stages, 2 Clamps, 2 Screws, Allen Wrench |
In Stock
|
$31 |
|

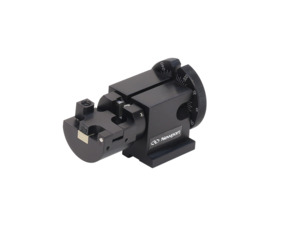

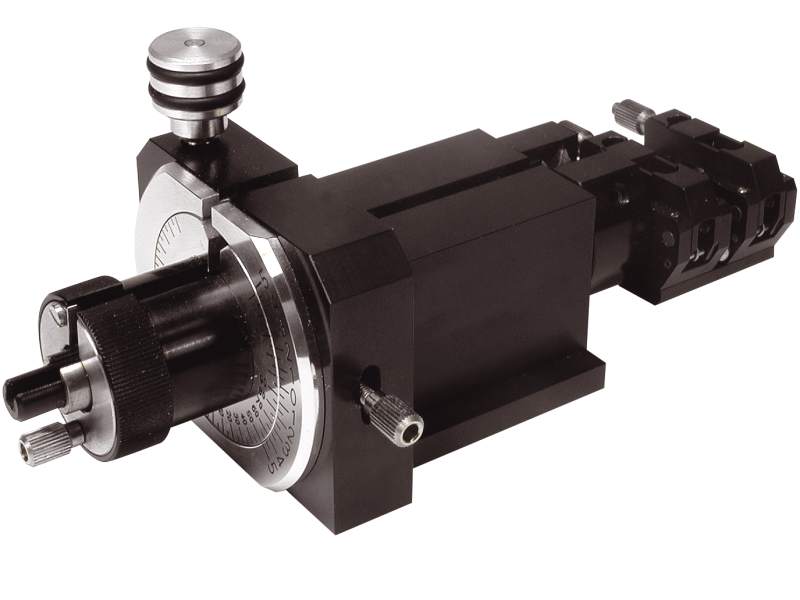

Designed for the most demanding rotation and alignment of angular sensitive components, 466A-717 and 466A-718 fiber rotators have a slotted design for easy insertion and removal of fiber and a full 360° coarse adjustment range.

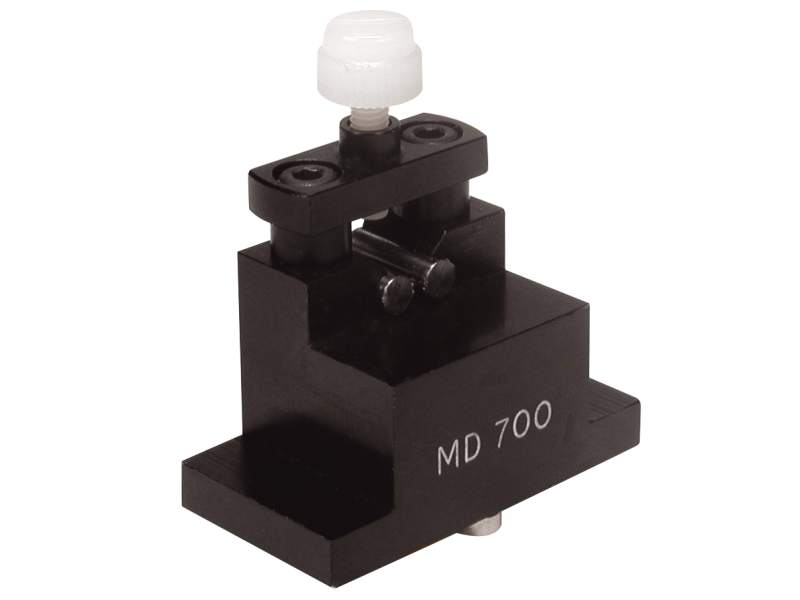

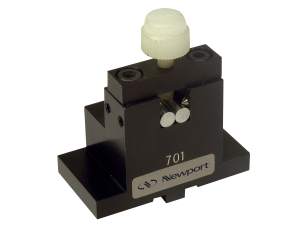

466A-700 and 466A-701 ferrule fiber holders secure optical fibers terminated with a cylindrical ferrule and can also be used to hold GRIN lenses. They use a "V" groove formed by two 9 mm long stainless steel rods. A Nylon clamp screw avoids damage to the component being held.

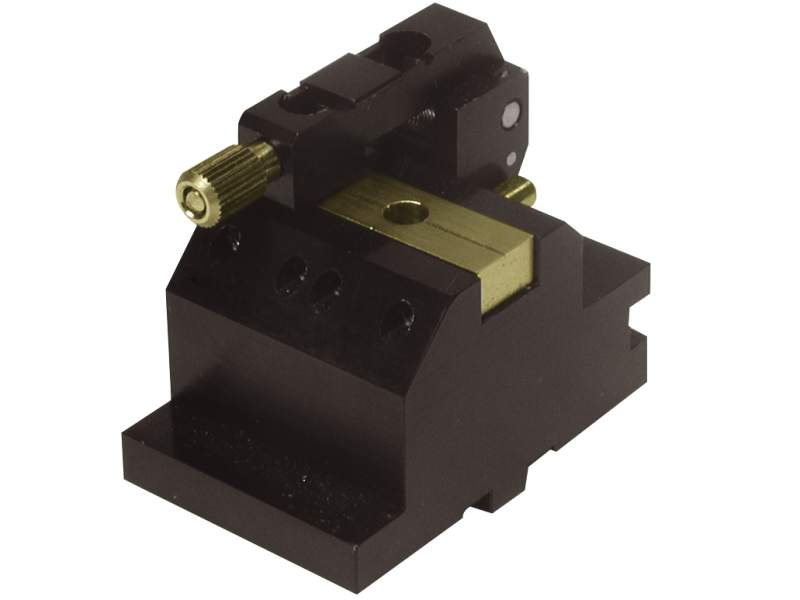

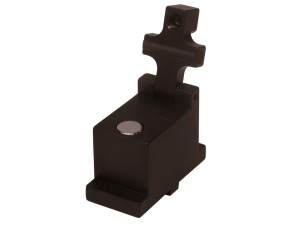

We offer 466A-709 single arm, 466A-710 dual arm, and 466A-711 magnetic single arm bare fiber holders for securing and positioning 125/250 µm stripped fibers.

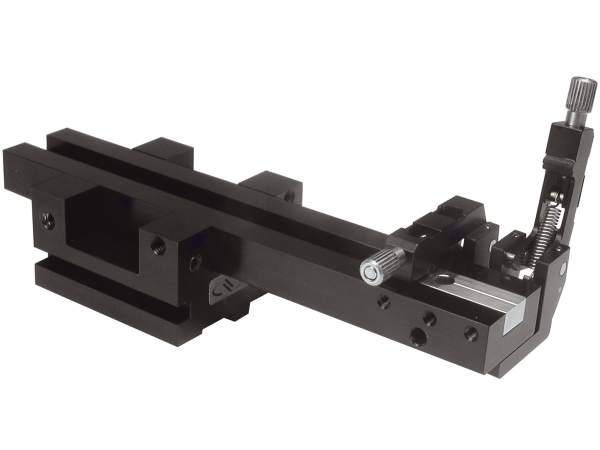

466A-750 long-reach fiber holder works with 125/250 µm bare optical fibers. It allows locating fibers offset from the central axis. The fiber is held in user-replaceable double V-groove by spring clamps. The clamp arm swings clear of V-groove for easy loading/unloading and has a force adjustable from 25-125 g. The contact point on fiber is a resilient pad.

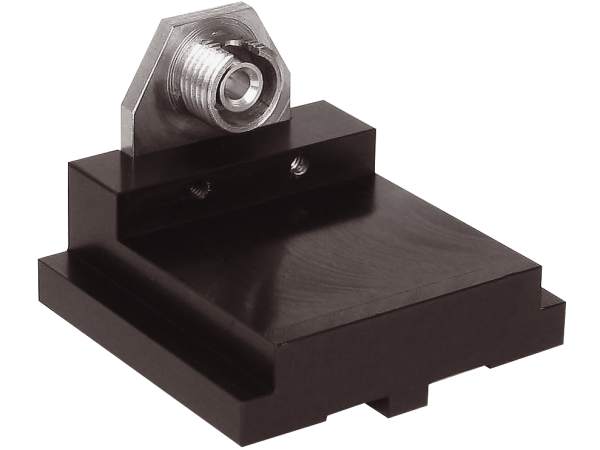

466A-735, 466A-736 and 466A-737 fiber holders allow for the easy insertion and removal of FC, SMA and ST connectorized fibers.

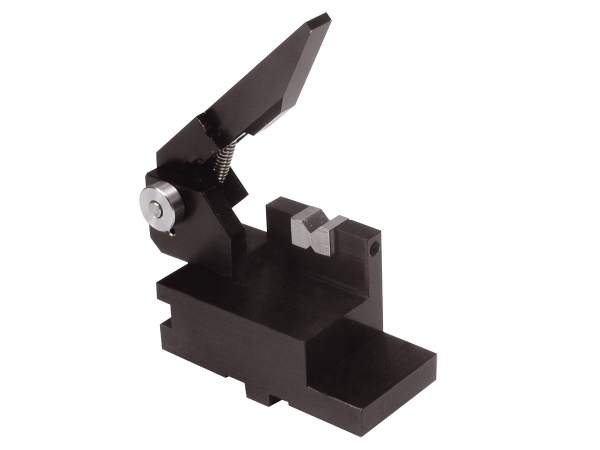

466A-734 GRIN lens holders can hold 1-2 mm and 2-3 mm in diameter GRIN lenses. They feature a 4 mm long reversible V-block.

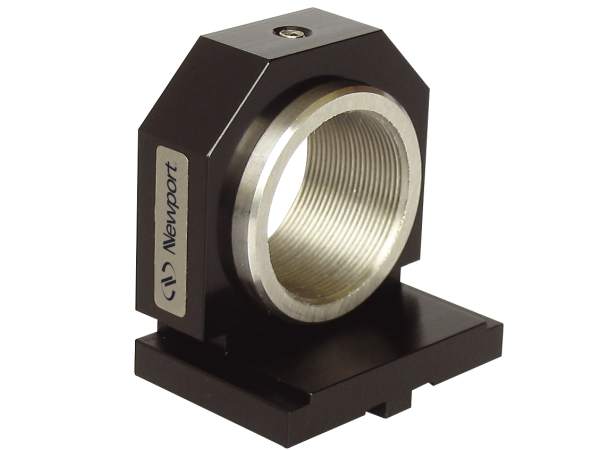

466A-150 objective mount is fitted with a removable stainless steel sleeve cut with the microscope objective thread. It offers easy adjustment and exchange of objectives or other components having a standard RMS 0.800-36 thread.

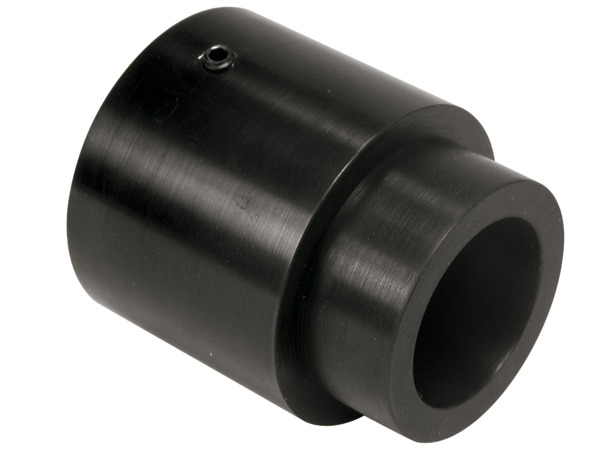

466A-156 extension tube is for use on the 466A-150 Objective Mount. It extends the reach by 25 mm allowing for access to components on wide platforms.

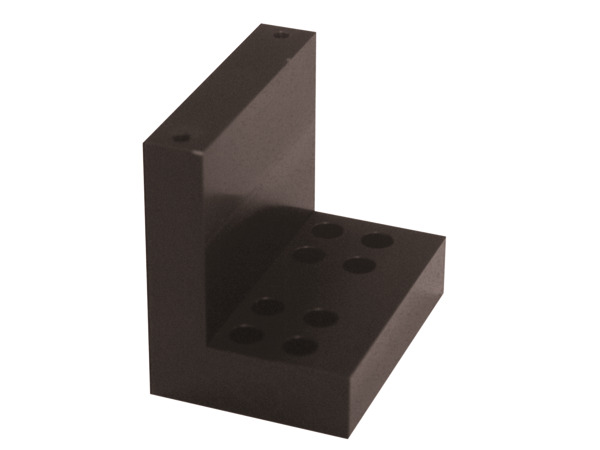

466A-147, 466A-148 and 466A-149 fixed brackets attach to the steady vertical pillar on the flexure stage using two screws. They provide a convenient rigid surface for mounting standard 466A accessories for alignment with items on the moving top plate of the flexure stage. They are available in imperial and metric versions.
466A-189 universal platform provides a simple fixed platform for mounting standard devices and fiber holders. It can be used with the 466A-147, 466A-148 and 466A-149 fixed brackets. It is bolted directly to an optical breadboard and provides an optical height of 94 mm which is compatible with the 466A Series Flexure Stages.

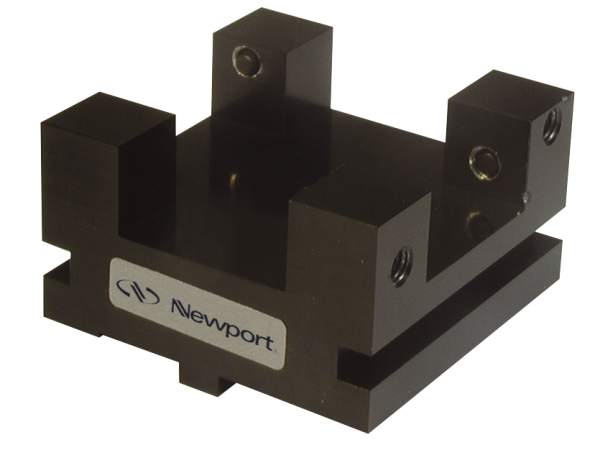

466A-752 universal base holds components on top of flexure stages. It can be located in either of the two orthogonal slots on the top plate for offset component mounting.

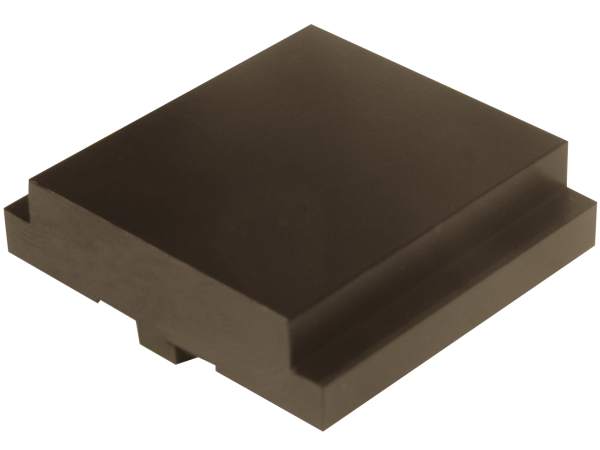

466A-153 component plate provides a basic platform for mounting of non-standard components.

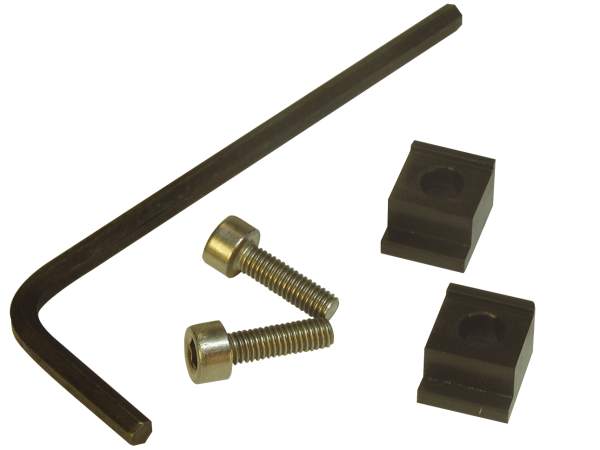

466A-154 clamp set is for use with 466A Series Flexure Stages and Accessories. One Clamp Set is included with all 466A flexure stages and with the 466A-147, 466A-148, and 466A-149 brackets. The set is available in imperial and metric versions.
