Bare Fiber Holder, Long Reach, 466A Series
Bare Fiber Holder, Long Reach, 466A Series
Model: 466A-750
Product Series Overview

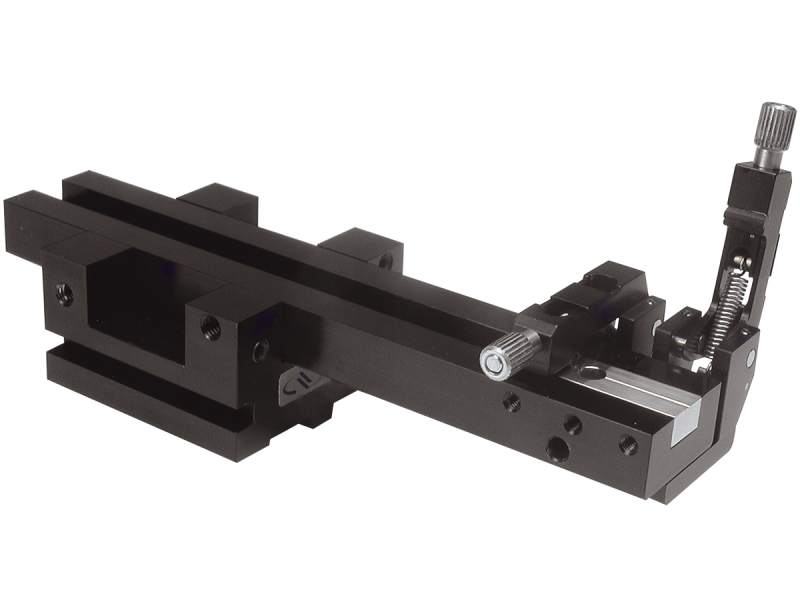

Flexure Fiber Alignment Stage AccessoriesThe 466A-750 Long Reach Bare Fiber Holder allows locating 125/250 μm bare fibers offset from the central axis. The fiber is held in user-replaceable double V-groove by spring clamps. A clamp arm swings clear of V-groove for easy loading and unloading. The clamp force is adjustable from 25 to 125 g. The contact point on the fiber is a resilient pad. Compatible with the 466A Series Flexure Stages.
Resources & Downloads
2D Product Drawings
466A-750-278(191.3 kB, PDF)
