Ferrule Fiber Holder, 1 to 2 mm Diameter, 466A Series
Ferrule Fiber Holder, 1 to 2 mm Diameter, 466A Series
Model: 466A-701
In Stock
Product Series Overview

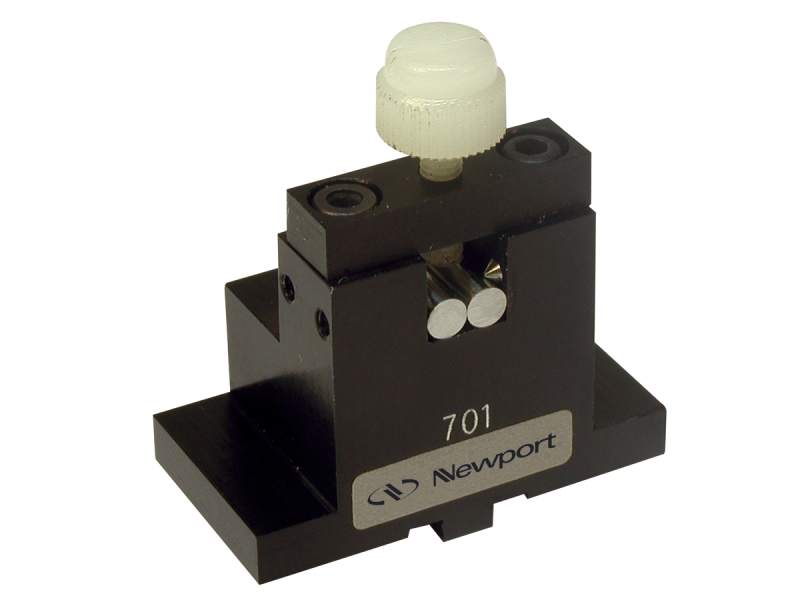

Flexure Fiber Alignment Stage AccessoriesThe 466A-701 Fiber Ferrule Holder holds optical fibers terminated with a 1 to 2 mm cylindrical ferrule. It can also be used to hold GRIN lenses. A V-groove is formed by two stainless steel rods 9 mm long. Nylon clamp screw avoid damage to the component being held. Compatible with the 466A Series Flexure Stages.
Resources & Downloads
2D Product Drawings
466A-701-270(102.2 kB, PDF)
