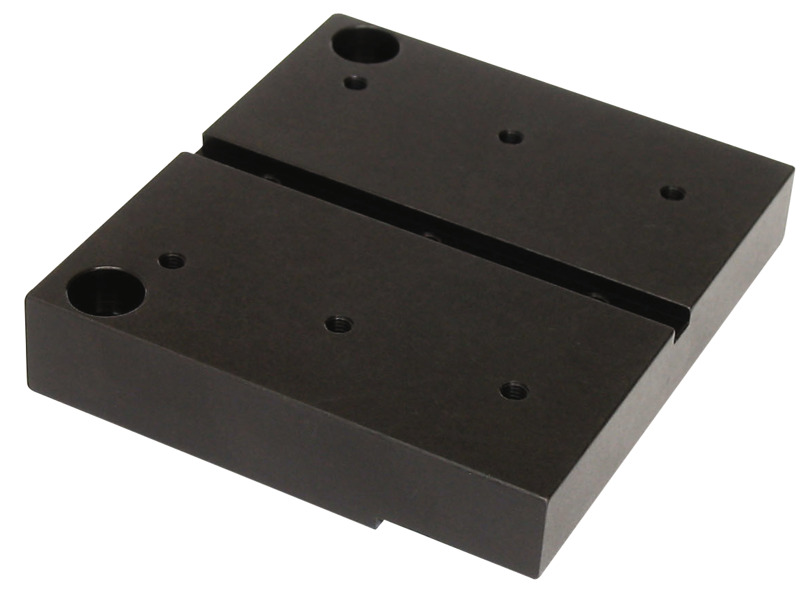

Large Fixed Bracket, Slot Length 60mm, 466A

Model: 466A-147

$81

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The 466A-147 Large Fixed Bracket has a 60 mm length slot and 6-32 tapped holes. It is used for mounting accessories along X axis of M-466A flexure stages. Includes 466A-154 clamp set.

Specifications

Technical Specs

Thread Type

6-32
Type

Large Fixed Bracket

Thread Type

6-32
Type

Large Fixed Bracket

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-147-262 (276.8 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
466A-154 Clamp Set, 466A Stage, Inc. 2 Clamps, 2 Screws & Allen Wrench	IMPERIAL	In Stock	$31
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40

Similar

Description	Compatibility	Avail.	Price
466A-150 Objective Mount, 466A Series	UNIVERSAL	In Stock	$161
466A-153 Component Plate, 466A Series	UNIVERSAL	In Stock	$27
466A-149 L-Shaped Bracket, Slot Length 46mm, 466A	IMPERIAL	In Stock	$94
466A-148 Small Fixed Bracket, Slot Length 20mm, 466A	IMPERIAL	In Stock	$81
466A-189 Universal Stand, 466A Series	UNIVERSAL	In Stock	$212

Compatible

Description	Compatibility	Avail.	Price
466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,301
466A-709 Bare Fiber Holder, Single Arm, 466A Series	UNIVERSAL	In Stock	$409
466A-LH Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,301
466A-734 Grin Lens Holder, 466A Series	UNIVERSAL	In Stock	$652
466A-735 Optical Fiber holder, FC Connector, 466A Series	UNIVERSAL	In Stock	$426
