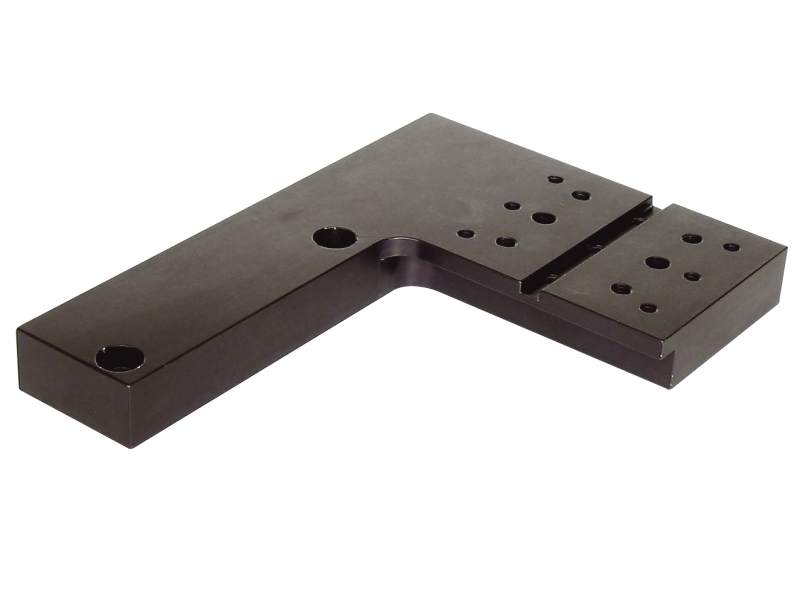

L-Shaped Bracket, Slot Length 46mm, 466A

L-Shaped Bracket, Slot Length 46mm, 466A

Model: 466A-149

$94

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The 466A-149 L Shaped Bracket has a 46 mm length slot and 6-32 tapped holes. It is used for mounting accessories along Y axis of 466A flexure stages. Includes 466A-154 clamp set.

Specifications

Technical Specs

Thread Type

6-32
Type

L Shaped Bracket

Thread Type

6-32
Type

L Shaped Bracket

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-149-264 (215 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL		In Stock	$38
		466A-154 Clamp Set, 466A Stage, Inc. 2 Clamps, 2 Screws & Allen Wrench	IMPERIAL		In Stock	$31
		TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL		In Stock	$41
		SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL		3 Weeks	$128
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		466A-150 Objective Mount, 466A Series	UNIVERSAL		In Stock	$161
		466A-153 Component Plate, 466A Series	UNIVERSAL		In Stock	$27
		466A-148 Small Fixed Bracket, Slot Length 20mm, 466A	IMPERIAL		In Stock	$81
		466A-147 Large Fixed Bracket, Slot Length 60mm, 466A	IMPERIAL		In Stock	$81
		466A-189 Universal Stand, 466A Series	UNIVERSAL		In Stock	$212

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		466A-735 Optical Fiber holder, FC Connector, 466A Series	UNIVERSAL		In Stock	$426
		466A-734 Grin Lens Holder, 466A Series	UNIVERSAL		In Stock	$652
		466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL		In Stock	$1,301
		466A-LH Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL		In Stock	$1,301
		466A-709 Bare Fiber Holder, Single Arm, 466A Series	UNIVERSAL		In Stock	$409
