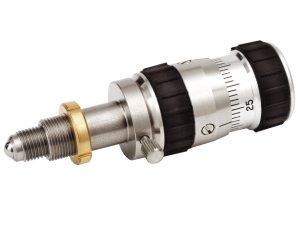

High-Precision Adjuster
High-Precision Adjuster
The DS-4F has a unique mechanical lever system and is the highest resolution mechanical adjuster we offer.

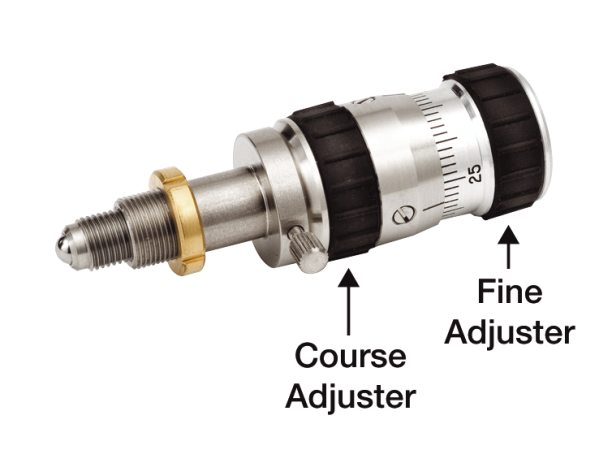

- Dual mechanisms for 8 mm coarse & 0.3 mm fine travel
- 50x better sensitivity than a standard micrometer
- Very smooth feel, largely independent from applied load
- Standard Ø3/8 inch (9.5 mm) mounting barrel See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | DS-4FManual Adjuster, High Precision, 8.0 mm Coarse Travel, 0.3 mm Fine Travel | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- TypeDifferential Micrometer
- Travel Range8.0 mm
- Drive TypeKnob
- Graduations1.33 µm
- Axial Load Capacity49 N
- Fine Travel0.3 mm
- Sensitivity0.02 µm
Features

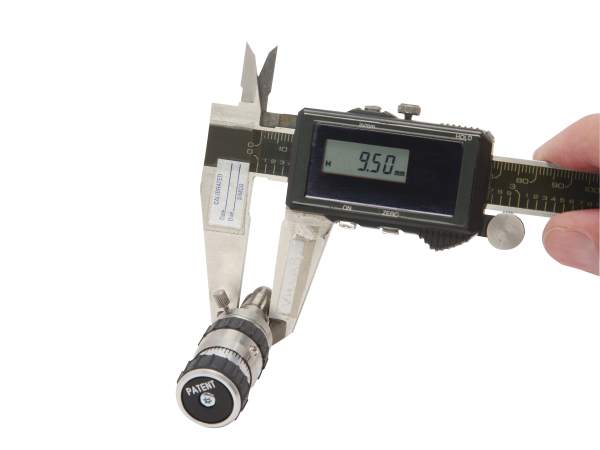

Standard Mounting Interface

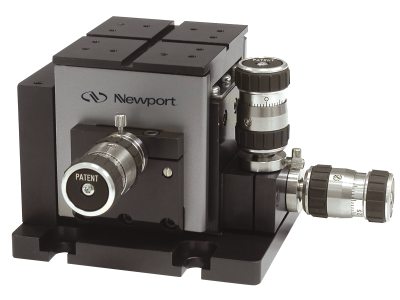

DS-4F adjuster has the industry-standard 9.5-mm mounting interface making it both interchangeable with other micrometers and compatible with almost all Newport stages and mounts.
20 nm Sensitivity
The DS-4F high precision adjuster is based on a mechanical lever system that provides exceptional 20 nm adjustment sensitivity. Its high-resolution and value make this adjuster a suitable alternative for a differential micrometer in cases where a direct position readout is not required. To activate the fine adjustment, the coarse adjustment needs to be locked in place with the thumbscrew.
