EQ Series Manual Stage 90 Degree Angle Brackets

Products
Features
Contact Us

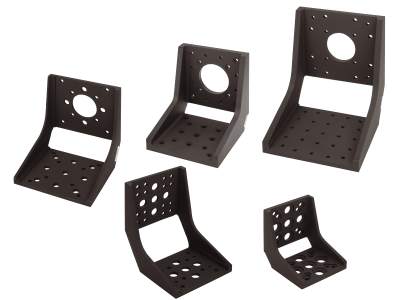

eq series 90 degree angle brackets with multiple angle bracket sizes shown

Overview

EQ Series Angle Brackets are made with an open-corner design to allow more mounting space, easier access to adjustments, and longer travel ranges for stages. They are compatible with UMR and/or UTR Series stages for assembling multi-axis positioners. These right-angle brackets are available in either an exterior or interior model, for a building X-Z and X-Y-Z motion control in a wider variety of configurations.

Open-corner design allows more mounting space
Two styles available for mounting on exterior or interior of bracket

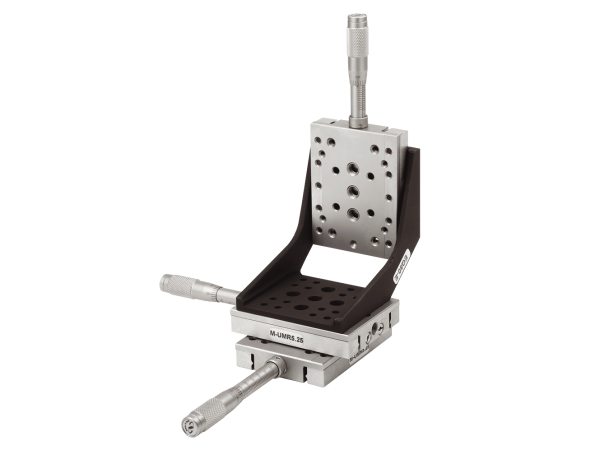

90° angle brackets for mounting UMR and UTR stages orthogonally

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Material	Thread Type	Use	Availability	Price	Brand
339232 Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01 $113 In Stock	339232 Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01	METRIC	1.0	1.0	90° Open Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	In Stock	$113	Newport
339233 Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02 $101 In Stock	339233 Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02	METRIC	1.0	2.0	90° Closed Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	In Stock	$101	Newport
EQ50-E Outer Bracket, Compatible with UMR5 Stages $141 In Stock	EQ50-E Outer Bracket, Compatible with UMR5 Stages	UNIVERSAL	1.0	3.0	90° Outer Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	In Stock	$141	Newport
EQ50-I Inner Bracket, Compatible with UMR5 Stages $118 In Stock	EQ50-I Inner Bracket, Compatible with UMR5 Stages	UNIVERSAL	1.0	4.0	90° Inner Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	In Stock	$118	Newport
EQ80-E Outer Bracket, Compatible with 80 mm Stages $160 In Stock	EQ80-E Outer Bracket, Compatible with 80 mm Stages	UNIVERSAL	1.0	5.0	90° Outer Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	In Stock	$160	Newport
EQ80-I Inner Bracket, Compatible with 80 mm Stages $141 In Stock	EQ80-I Inner Bracket, Compatible with 80 mm Stages	UNIVERSAL	1.0	6.0	90° Inner Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	In Stock	$141	Newport
EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages $278 In Stock	EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages	IMPERIAL	1.0	7.0	90° Outer Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	In Stock	$278	Newport
EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages $215 In Stock	EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages	IMPERIAL	1.0	8.0	90° Inner Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	In Stock	$215	Newport
M-EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages, Metric $278 In Stock	M-EQ120-E Outer Bracket, Compatible with UMR12 and UTR120 Stages, Metric	METRIC	1.0	9.0	90° Outer Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	In Stock	$278	Newport
M-EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric $215 In Stock	M-EQ120-I Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric	METRIC	1.0	10.0	90° Inner Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	In Stock	$215	Newport

Show All

Features

Cast Aluminum for Strength & Machined for Accuracy

Each bracket is cast from aluminum and then precision machined to ensure flat interfaces and accurate angles.

Inner or Outer Mounting Configurations

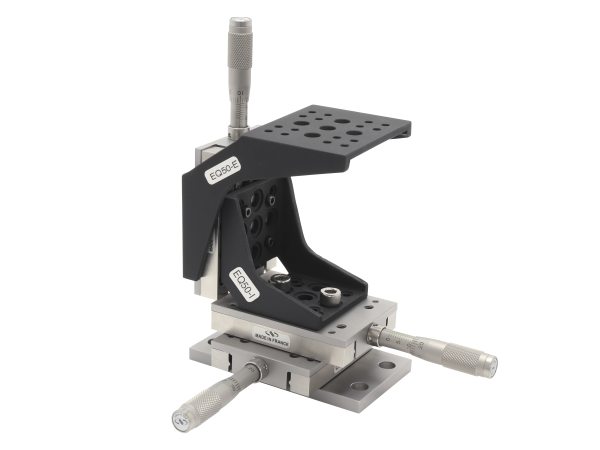

For each of the three sizes of EQ Series Right Angle Brackets available, there are two configurations offered. UMR series stages (UMR5, UMR8 and UMR12) can be vertically mounted either on the inner side of an outer bracket ("-E" models) facing towards the XY stage, or on the outside of an inner bracket ("-I" models) and facing away.
