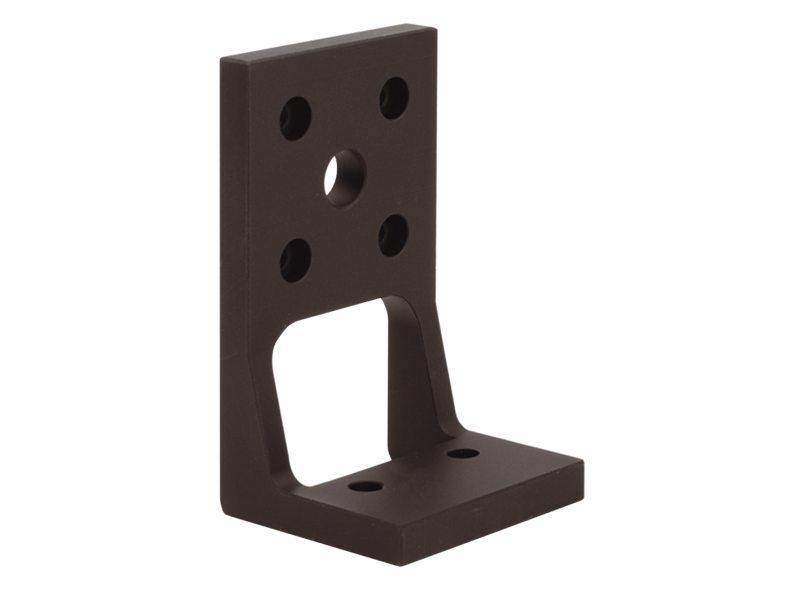

Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01

Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01

Model: 339232

$113

In Stock

Compare

Add to List

Product Series Overview

EQ Manual Stage 90 Degree Angle Brackets

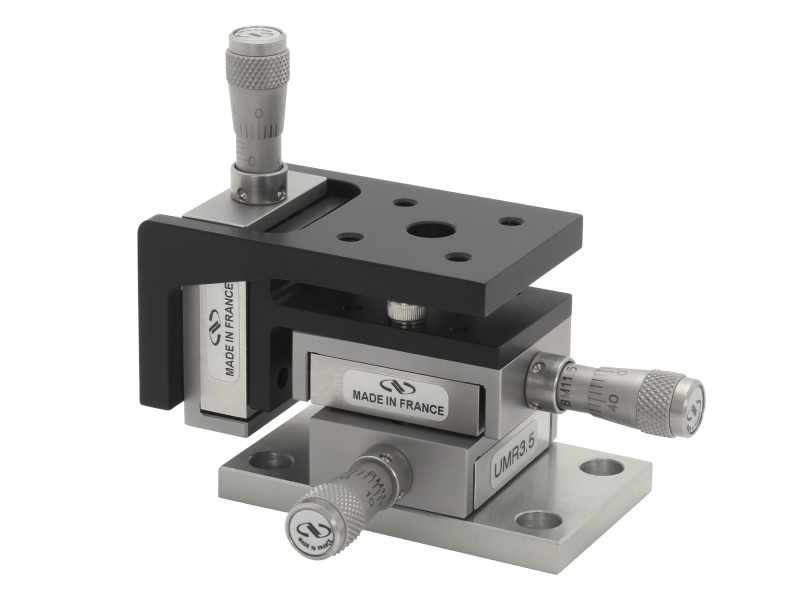

The 339232 EQ3.01 Series Angle Bracket can be used to assemble YZ and XYZ positioners using UMR3 stages.

Specifications

Technical Specs

Type

90° Open Corner Angle Bracket
Material

Anodized Aluminum

Use

UMR3 Stages

Type

90° Open Corner Angle Bracket
Material

Anodized Aluminum

Use

UMR3 Stages

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

EQ3-S (125.1 kB, PDF)

Other

339232 RoHS Certificate (278.2 kB, PDF)
