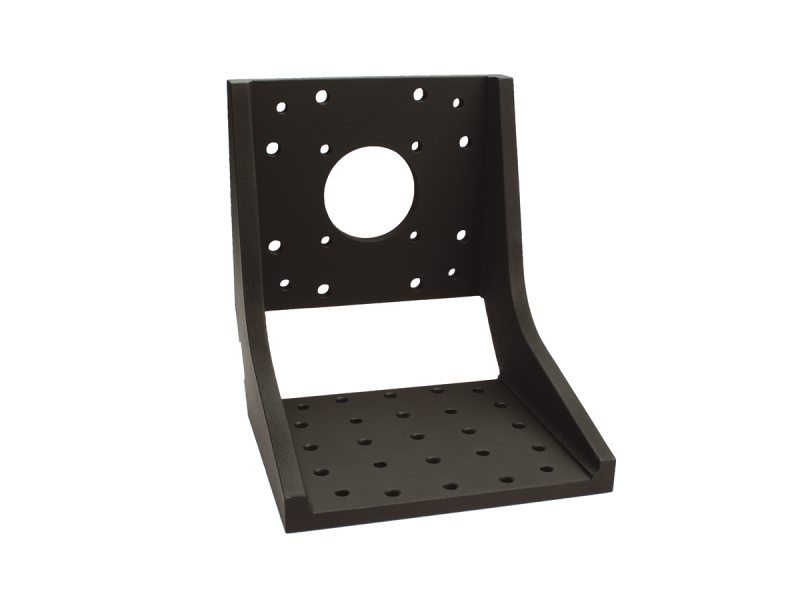

Outer Bracket, Compatible with UMR12 and UTR120 Stages

eq series 90 degree angle brackets with multiple angle bracket sizes shown

Model: EQ120-E

$278

In Stock

Compare

Add to List

Product Series Overview

EQ Manual Stage 90 Degree Angle Brackets

The EQ120-E Outer Right Angle Bracket is compatible with UMR12 and UTR120 stages. With EQ Series Angle Brackets, multi-axis positioners can be assembled from two or more standard UMR and/or UTR Series positioners. Individual positioners assembled with mounting brackets give you a greater range of positioning versatility with fewer total components. Because components and brackets can be reused in different configurations to meet your changing needs, modular multi-axis systems are a great way to get the most value from your equipment.

Specifications

Technical Specs

Type

90° Outer Angle Bracket
Material

Anodized Aluminum
Thread Type

1/4-20 and 10-24

Use

UMR12 and UTR120 Stages

Type

90° Outer Angle Bracket
Material

Anodized Aluminum
Thread Type

1/4-20 and 10-24

Use

UMR12 and UTR120 Stages

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

EQ120-E.pdf (417.7 kB, PDF)

Other

EQ120-E RoHS Certificate (278.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
CL18-40 Carriage Lock, UMR12.40	UNIVERSAL	In Stock	$43
FP18-40 Fixed Positioning Kit, UMR12.40	UNIVERSAL	Show	$54
ADAPT-BM25-375 Motorized Actuator Adapter, VP-25AA, LTA-HS or PZA12 to UMR12, TGN120 or MVN120	UNIVERSAL	In Stock	$71

Similar

Description	Compatibility	Avail.	Price
EQ80-E Outer Bracket, Compatible with 80 mm Stages	UNIVERSAL	In Stock	$160
339232 Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01	METRIC	In Stock	$113
EQ50-I Inner Bracket, Compatible with UMR5 Stages	UNIVERSAL	In Stock	$118
360-90 Angle Bracket, 90°, 1/4-20 (M6) Slots, 1 in. Spacing	IMPERIAL	In Stock	$100
EQ80-I Inner Bracket, Compatible with 80 mm Stages	UNIVERSAL	In Stock	$141

Compatible

Description	Compatibility	Avail.	Price
UMR12.40 Linear Stage, Single-Row Ball Bearings, 1.57 in., 10-24 and 1/4-20	IMPERIAL	In Stock	$787
UTR120A Manual Rotation Stage, Steel, 2.44 in. Aperture, 4.7 in. Diameter, 4° Fine, 1/4-20	IMPERIAL	In Stock	$1,628
UTR120 Manual Rotation Stage, Steel, 4.7 in. Diameter, 4° Fine, 1/4-20	IMPERIAL	In Stock	$1,628
M-PBN12 Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series	UNIVERSAL	In Stock	$147
UMR12.80 Linear Stage, Single-Row Ball Bearings, 3.15 in., 10-24 and 1/4-20	IMPERIAL	In Stock	$1,204
