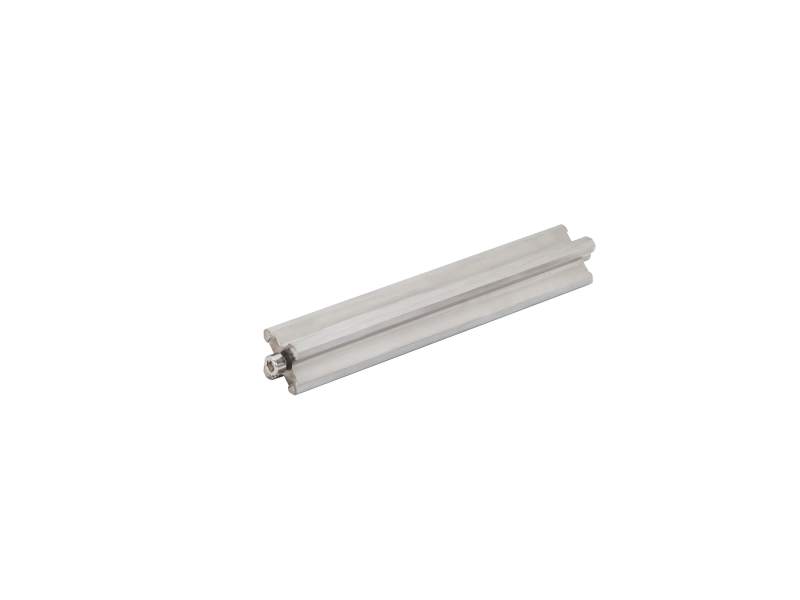

Optical Rail, Stainless Steel, 192 mm Length, 26 mm Width, M6

Model: X26-192

$266

In Stock

Compare

Add to List

Product Series Overview

26 mm Steel Four-Sided Optical Rails

The X26-192 Stainless Steel Optical Rail is an excellent choice for construction of precision optical systems such as spatial filters, interferometers, collimators, and microscopes. This 192 mm length rail with an M6 hole on each end can be fixed to optical tables by using CN26-12 Carriers upside down as rail feet. Carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces. Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Compatible optical mounts, which include SL Series Gimbal Optical Mounts, SB Series Optic and Lens Barrel Mounts, and SB18YZ Series Lens Positioners, are provided a common optical axis height of 40 mm above the rail surface.

Specifications

Technical Specs

Type

Four Sided Optical Rail
Rail Length

192 mm
Material

Stainless Steel
Height

26 mm

Length

192 mm
Width

26 mm

Type

Four Sided Optical Rail
Rail Length

192 mm
Material

Stainless Steel
Height

26 mm

Length

192 mm
Width

26 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

X26 DWG-S (77.9 kB, PDF)

Other

X26-192 RoHS Certificate (279.7 kB, PDF)
X26-192_RoHS2021.pdf (682.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
RH-40 Spacer Block, For CN26C 90° Rail Carrier	UNIVERSAL	Show	$41
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40

Similar

Description	Compatibility	Avail.	Price
X26-128 Optical Rail, Stainless Steel, 128 mm Length, 26 mm Width, M6	UNIVERSAL	In Stock	$210
X48-0.5 Optical Rail, Aluminum, 500 mm Length, M4 Threads, X48 Series	UNIVERSAL	In Stock	$196
X26-256 Optical Rail, Stainless Steel, 256 mm Length, 26 mm Width, M6	UNIVERSAL	In Stock	$363
X26-384 Optical Rail, Stainless Steel, 384 mm Length, 26 mm Width, M6	UNIVERSAL	In Stock	$461
X26-512 Optical Rail, Stainless Steel, 512 mm Length, 26 mm Width, M6	UNIVERSAL	In Stock	$539

Compatible

Description	Compatibility	Avail.	Price
CN26-12 Optical Rail Carrier, 12 mm Length, 1/4-20 Thread, X26 Series	IMPERIAL	In Stock	$74
CN26-40 Optical Rail Carrier, 40 mm Length, 1/4-20 Thread, X26 Series	IMPERIAL	In Stock	$133
CN26-90 Optical Rail Carrier, 90 mm Length, 1/4-20 Thread, X26 Series	IMPERIAL	In Stock	$196
M-CN26-12 Optical Rail Carrier, 12 mm Length, M6 Thread, X26 Series	METRIC	In Stock	$74
M-CN26-90 Optical Rail Carrier, 90 mm Length, M6 Thread, X26 Series	METRIC	In Stock	$196
M-CN26-140 Optical Rail Carrier, 140 mm Length, M6 Thread, X26 Series	METRIC	In Stock	$372
CPT26.12 Optical Post Carrier, SP Series Post, X26 Series Rail	UNIVERSAL	Show	$103
CPT26.08 Optical Post Carrier, TSP Series Post, X26 Series Rail	UNIVERSAL	Show	$103
SJ25.4 Kinematic Mirror Mount, 25.4 mm, ±1° tip/tilt, 4-40 & 1/4-20	IMPERIAL	Show	$456
TSJ Rotating Base, For SJ25.4, 4-40 & 1/4-20	IMPERIAL	In Stock	$236
