Adaptor Top, Fixed, Kinematic Breadboard Adaptor
Adaptor Top, Fixed, Kinematic Breadboard Adaptor
Model: AKP-TF
Product Series Overview

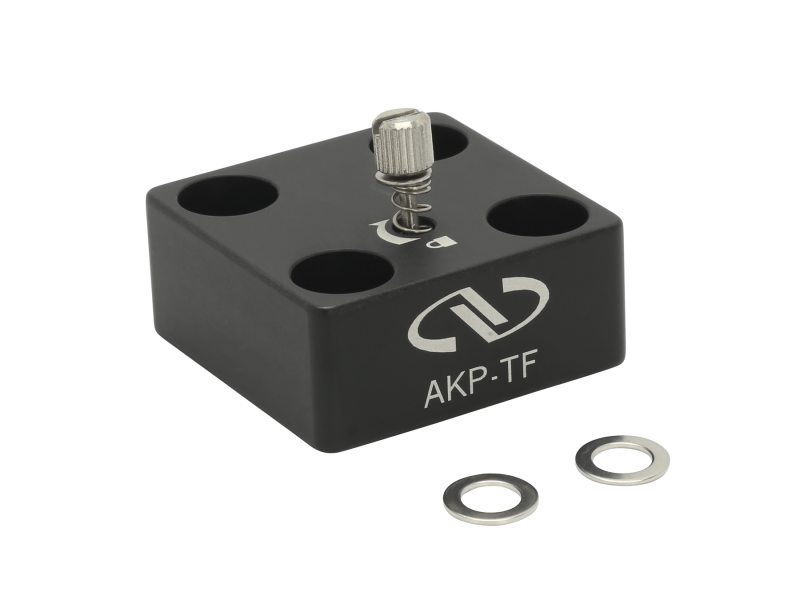

Kinematic Breadboard AdaptorsThe AKP-TF is the fixed kinematic adaptor plate included with the AKP-FX set of Kinematic Breadboard Adaptors. The AKP-TF Fixed Adaptor set has a captive locking screw that clamps the breadboard down to the AKP-B bases. With the locks engaged, the breadboard cannot be moved or removed. When used with the AKP-BC “Cone”, AKP-BV “V”, and AKP-BF “Flat” these components can be used to create highly stable and repeatable kinematic mechanisms such as custom kinematic bases or mounts in the Cone-V-Flat configuration.
Resources & Downloads
2D Product Drawings
AKP-TF.PDF(263.8 kB, PDF)
Other
AKP-TF RoHS Certificate(278.6 kB, PDF) AKP-TF_RoHS2021.pdf(680.8 kB, PDF)
